Monitor Scantool Data
C1702 Variant Coding ErrorScantool Diagnosis - Monitor Scantool DataMonitor Scantool DataEPS Type recognition 1.
Connect scantool to Data Link Connector (DLC)
2.
Ignition "OFF" and then Ignition "ON".
3.

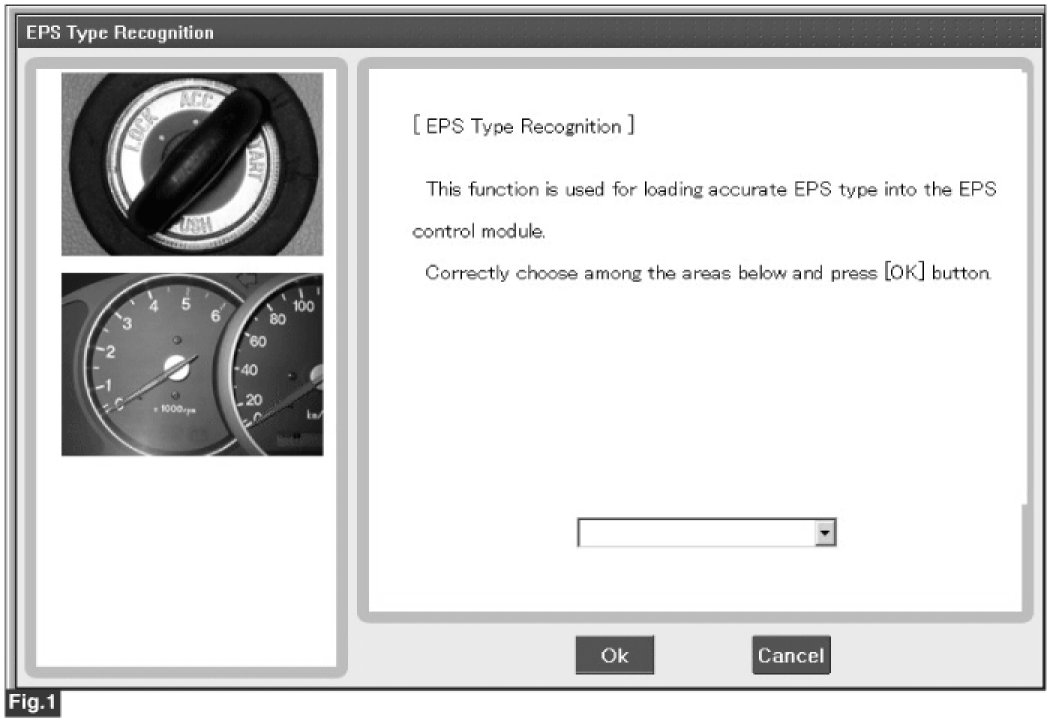

Choose the area type (figure 1).
4.
Ignition "OFF" & Waiting 20 sec.
5.
Ignition "ON".
6.
Select "Diagnostic Trouble Codes (DTCs)" mode again.
7.
Are any DTCs present?
