Package Tray Trim Replacement

Package Tray Trim Replacement

NOTE:
- Put on gloves to protect your hands.
- When prying with a flat-tip screwdrivers, wrap it with protective tape to prevent damage.
- Take care not to bend or scratch the trim and panels.

1. Remove the rear seat assembly.
2. Remove the door scuff trim.

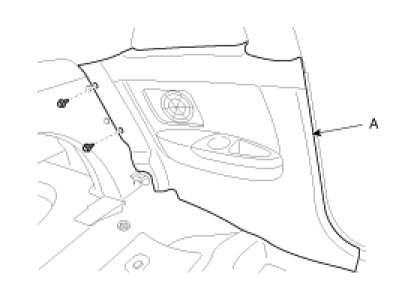

3. After loosening the mounting clips, then remove the luggage side trim (A).




4. After loosening the mounting screw, then remove the rear pillar trim (B).

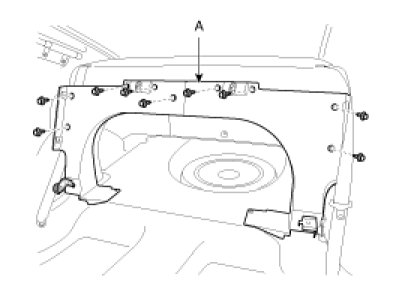

5. After loosening the mounting clips, then remove the package tray trim (A).




6. Installation is the reverse of removal.
