Electro Chromic Inside Rear View Mirror
Removal 1.

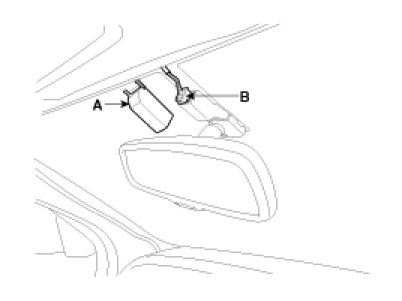

Remove the mirror wire cover(A) and connector(B).
2.

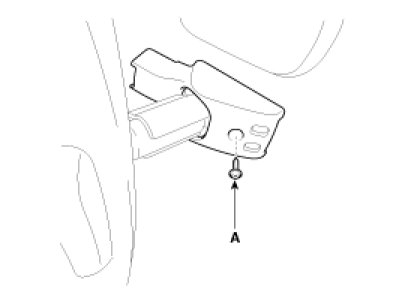

Remove the ECM mirror screw(A).
3.

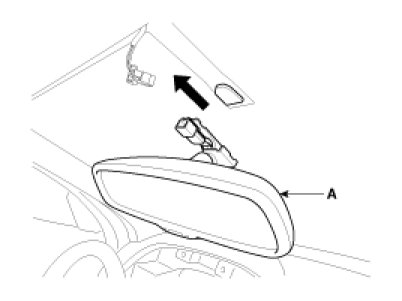

Remove the inside rear view mirror(A) pulling it upside carefully.
NOTE: Make sure the mounting bracket and mirror not to be damaged.
Installation 1.
Install the inside rear view mirror.
2.
Connect the inside rear view mirror connector.
3.
Install the mirror wire cover.
