Odometer: Testing and Inspection
InspectionTrip Switch 1.
Disconnect the negative (-) battery terminal.
2.

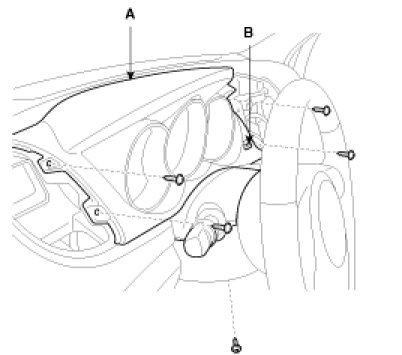

Remove the cluster fascia panel and upper shroud(A) after disconnecting the connector(B).
3.

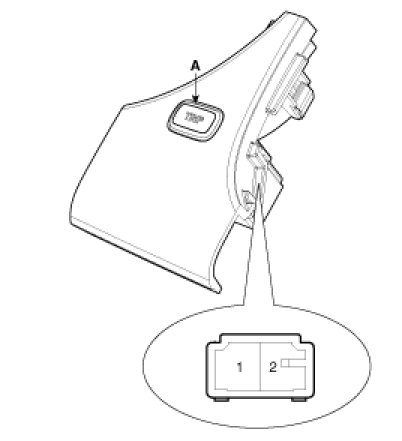

Remove the trip switch(A) from the cluster facia panel.
4.

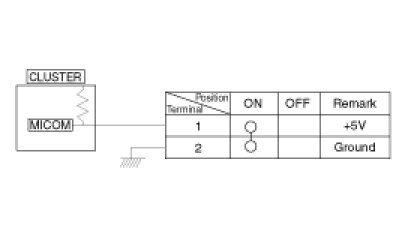

Check for continuity between the terminals in each switch position according to the table.
