Seals and Gaskets: Service and Repair
Drive Shaft Oil SealReplacement 1.
Disconnect the drive shaft from the transaxle. (refer to Drive shaft in DS group)
2.

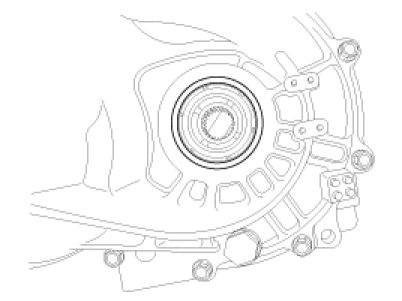

Using a flat-tip screwdriver, remove the oil seal.
3.

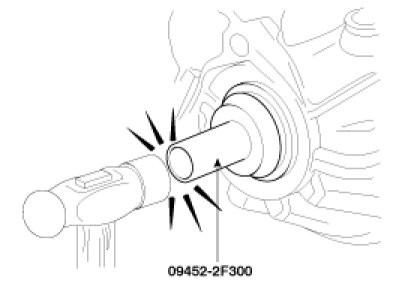

Using the special tool(09452-2F300), tap the drive shaft oil seal into the transaxle.
