Rear Glass Defogger Switch
Inspection 1.
The rear window defogger switch inputs can be checked using the GDS.
2.

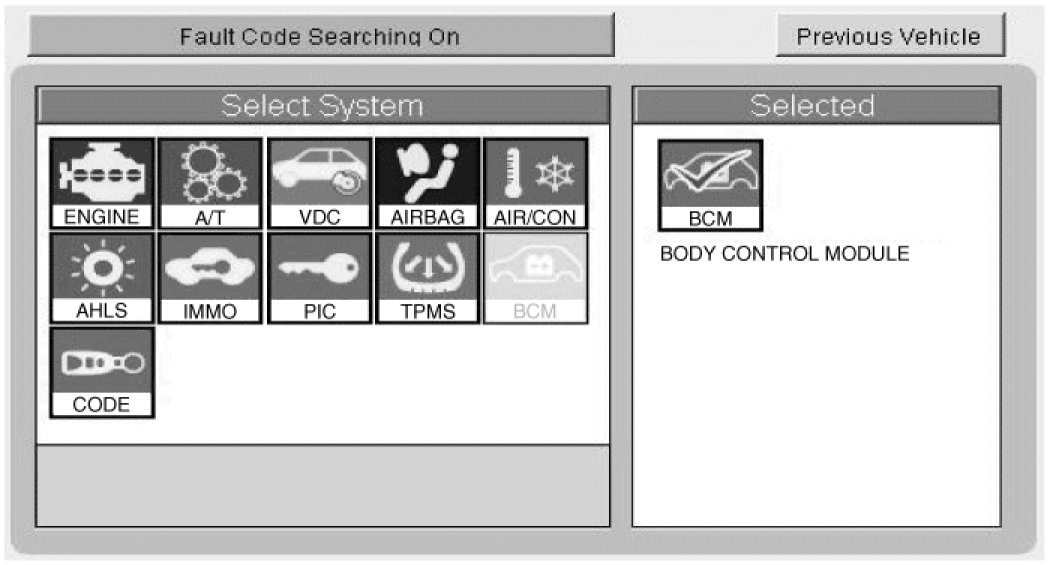

To check the input value of rear window defogger switch, select option "BODY CONTROL MODULE".
3.

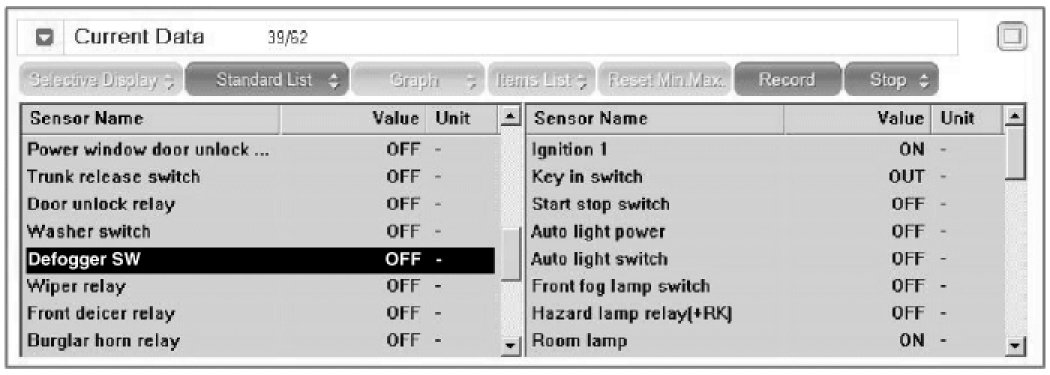

Select option "CURRENT DATA".
4.

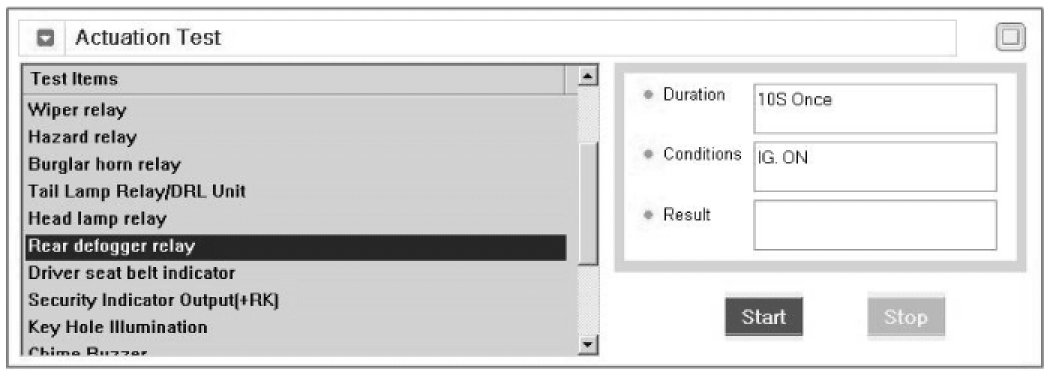

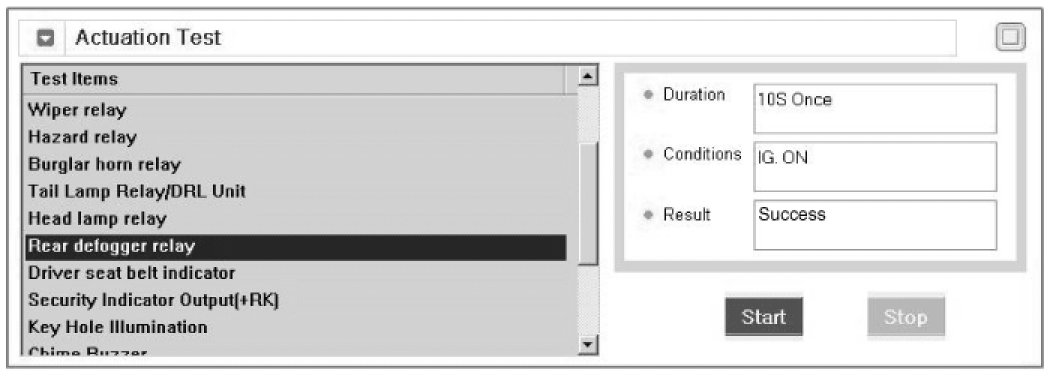

To check the input value of rear window defogger switch in force mode, select option "ACTUATION TEST".
