Monitor DTC Status
B1602 CAN ErrorScantool DiagnosticsMonitor Scantool DataCheck DTC 1.
Check DTC with scantool.
2.
Check DTC related CAN communication is set on Smart key Module and every modules.
3.
If there is DTC related Module Check the DTC according to troubleshooting guide.
4.
Repair and erase the DTC with Scantool.
5.

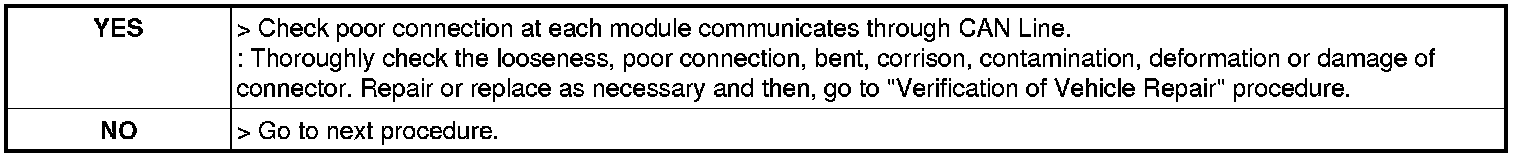

Is the DTC erased?
