Monitor Scantool Data
C1603 Derating (EPS Thermal Protection)Scantool Diagnosis - Monitor Scantool DataMonitor Scantool Data 1.
Connect scantool to Data Link Connector (DLC)
2.
Ignition "ON" & Engine "ON".
3.
Monitor the "MOTOR TEMPERATURE" parameters on the Scantool.

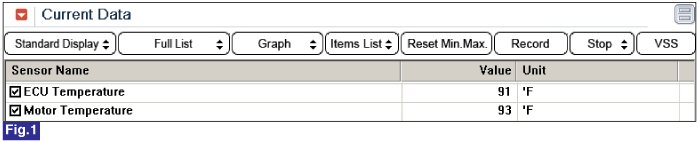

Specification : Less than 85 °C (185 °F) Fig.1) Normal data (IG ON & ENG ON)
4.
Is the measured "Motor Temperature" within specifications?
