Entertainment Systems: Testing and Inspection

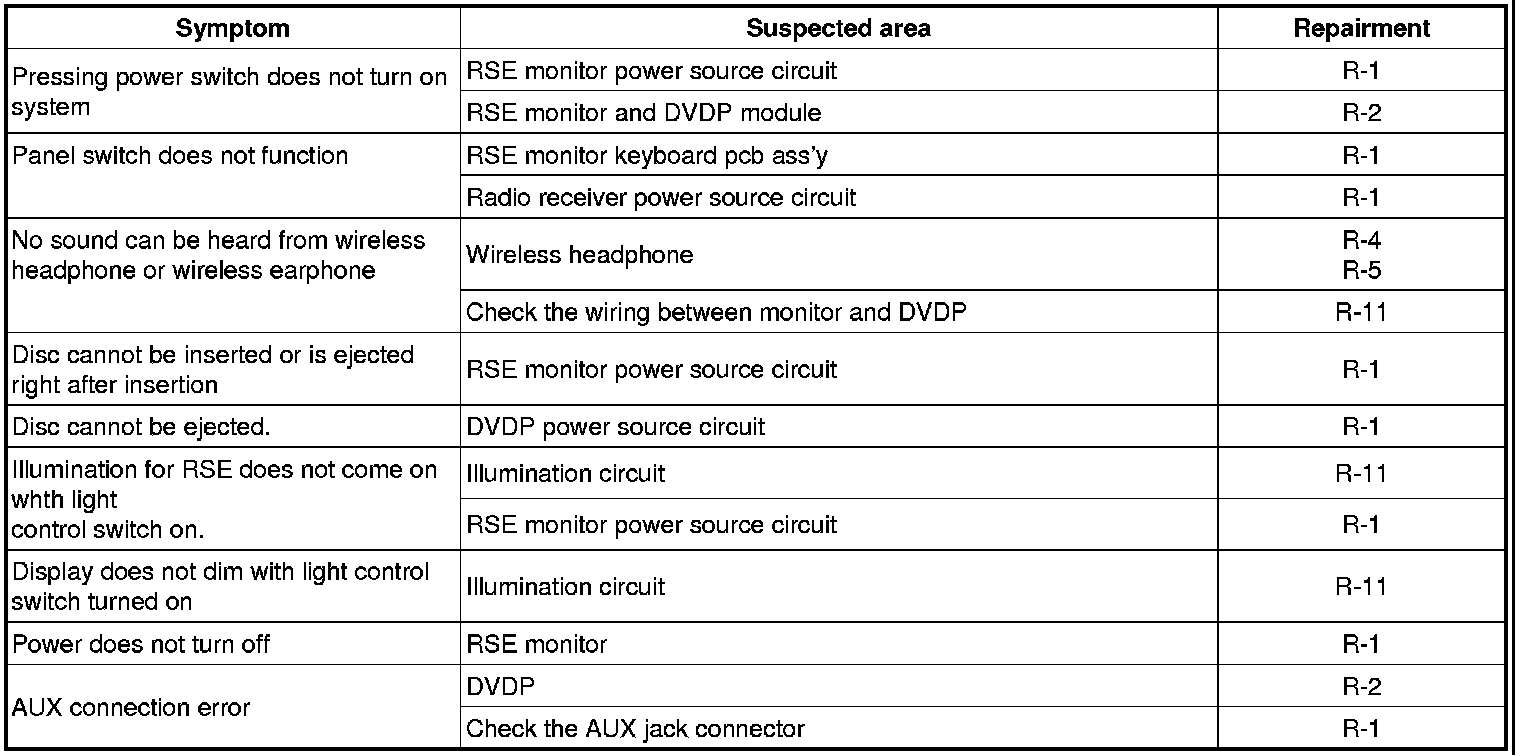

Troubleshooting





R-1 : Replace the RSE monitor
1. Check the same problems after replaceing the RSE monitor

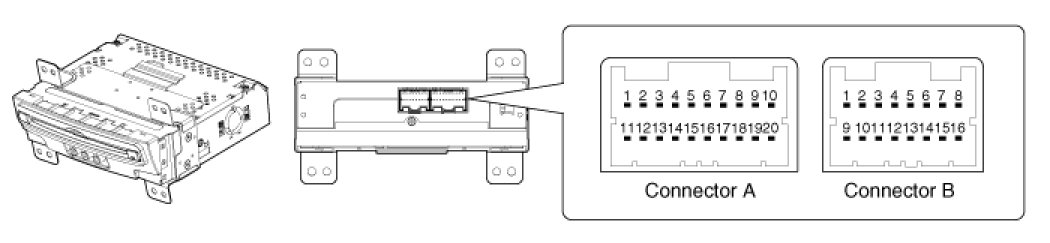

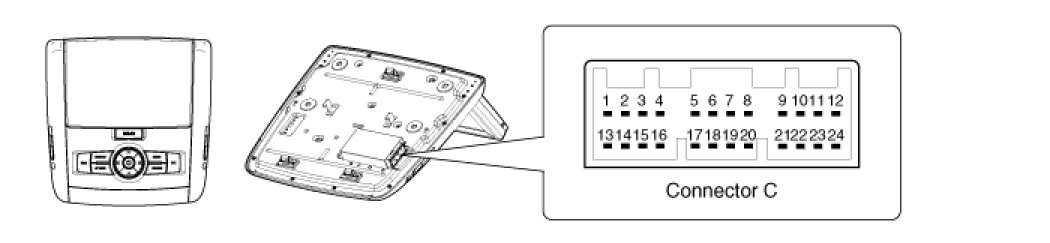

R-2 : Check the power connection of monitor and DVDP.
1. Remove the monitor and DVDP.
2. Check the specified condition of terminal.



















R-3 : Replace the wireless headphone
1. Check the same problems after replaceing the wireless headphone






R-4 : Check the wireless headphone
1. Check the wireless headphone power button.
2. Check the volume button.

R-5 : Check again after replacing the Monitor and DVDP


















1. Check the input signal of Illumination (+)




















2. Check the illumination (-) input signal using the oscilloscope




















3. Check the vehicle illumination control unit .
