Seats: Description and Operation





Description

Air ventilation seat
It blows the indoor air through the blower fan installed at the seat cushion and back lower part, and supplies the air into the seat cushion and the seat back through the duct.
It sends a indoor air to the seat surface through the air ventilation layer between upper and lower layer.

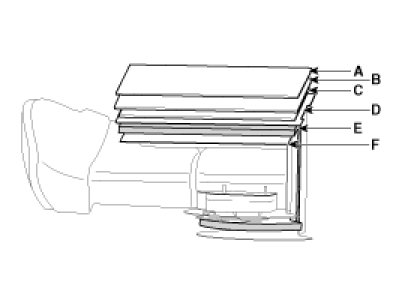

Seat Back Layers

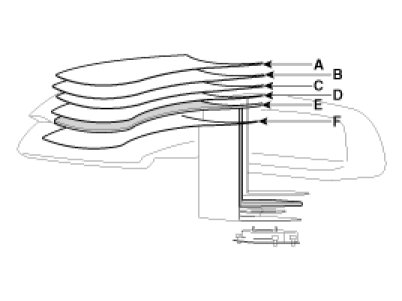

Seat Cushion Layers

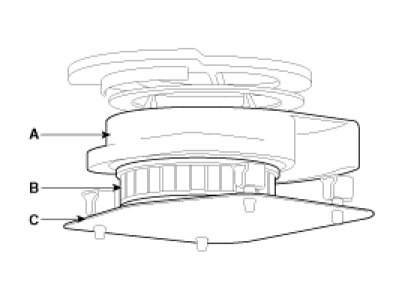

Fan
