Tail Lamp: Service and Repair





Removal

1. Disconnect the negative (-) battery terminal.

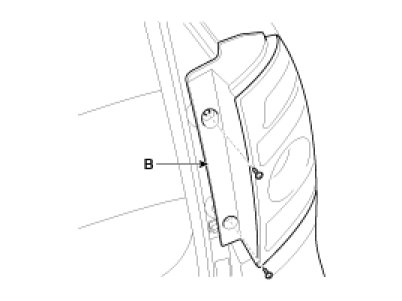

2. Loose the screws (2EA) holding the rear combination lamp then disconnect the connector (A) then remove the outside rear combination lamp (B).

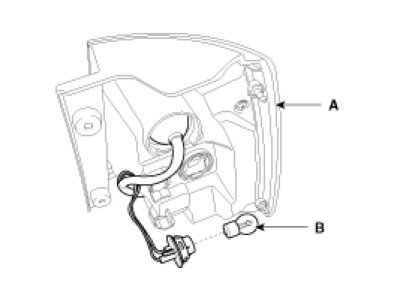

3. Replace the bulbs (B) after removing the rear combination lamp assembly (A).




4. If the bulbs should be only replaced without removing lamp assembly, replace the bulbs after removing the rear combination lamp cover inside trunk.

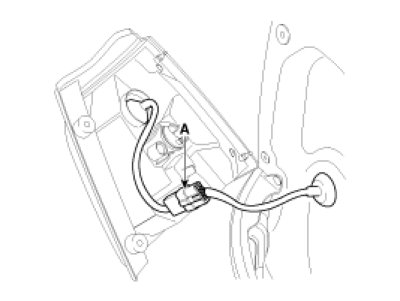

5. Disconnect the lamp cover on tailgate. Remove the lamp assembly (A) after loosening nuts (4EA) and disconnecting the connector.

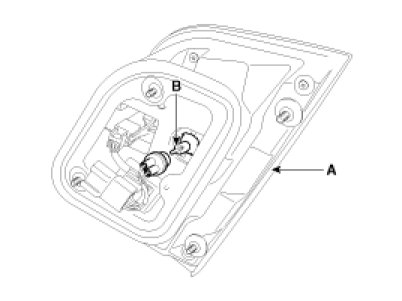

6. Remove the tailgate combination lamp assembly (A) and then replace the bulbs (B).




7. If the bulbs should be only replaced without removing lamp assembly, replace the bulbs after removing the tailgate lamp cover inside trunk.

Installation

1. Install the tailgate combination lamp assembly after assembling the bulb.
2. Install the lamp cover to the tailgate after connecting the lamp connector.
3. Install the rear combination lamp assembly after assembling the bulbs and connecting the lamp connector.
