Clutch Disc, M/T





Clutch Disc, M/T

Standard value

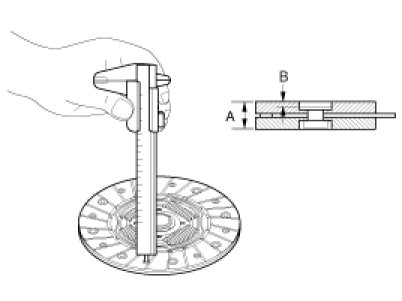

Clutch disc thickness(A)[when free] :
[GSL 2.4] 8.7 ± 0.3 mm (0.343 ± 0.012 in)
[DSL 2.2] 8.8 ± 0.2 mm (0.346 ± 0.008 in)
Clutch disc rivet depth(B) 1.3mm (0.051in)
