Fluid Pan, A/T

Oil Pan

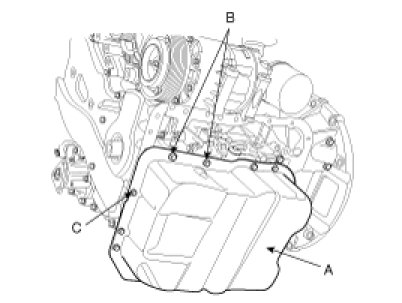

Install the oil pan.

Uniformly tighten the bolts in several passes.

Tightening torque :
M9(B) 30.4 - 34.3 N.m (3.1 - 3.5 kgf.m, 22.4 - 25.3 lb-ft)
M6(C) 9.8 - 11.8 N.m (1.0 - 1.2 kgf.m, 7.2 - 8.7 lb-ft)
