Repair Procedures

Replacement

1. Disconnect the negative (-) battery terminal.
2. Recover the refrigerant with a recover/ recycling/ charging station.
3. When the engine is cool, drain the engine coolant from the radiator.
4. Remove the rear luggage side trim .

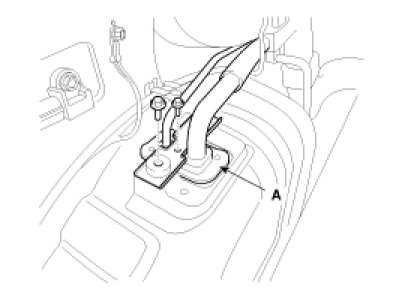

5. Loosen the refrigerant line mounting nuts, and then remove the rear refrigerant line (A).




6. Loosen the refrigerant line mounting bolts, and then remove the rear upper refrigerant line (A).

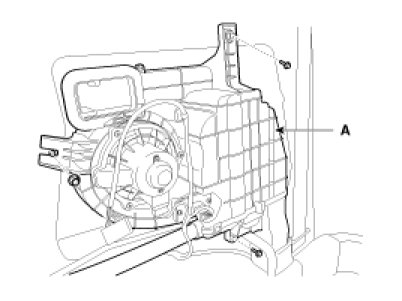

7. Loosen the rear heater unit mounting bolts, and then remove the rear heater unit(A).

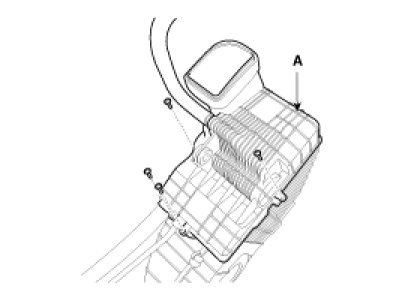

8. Remove the evaporator core cover(A).

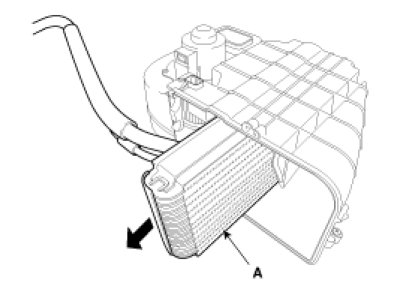

9. Remove the evaporator core(A).




10. Installation is the reverse order of removal.
