Repair Procedures
Removal 1.

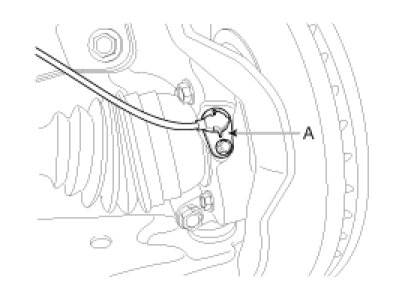

Remove the front
wheel speed sensor mounting bolt (A).
Tightening torque: 6.9 - 10.8 N.m (0.7 - 1.1 kgf.m, 5.1 - 8.0 lb-ft) 2.
Remove the front wheel guard.
3.

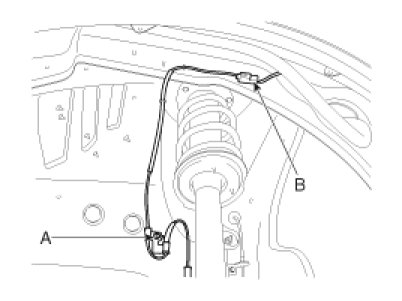

Remove the front
wheel speed sensor bracket (A).
4.
Disconnect the front
wheel speed sensor connector (B), then remove the front wheel speed sensor.
