Repair Procedures

Removal

1. Remove the tailgate trim after removing the screws and clips.

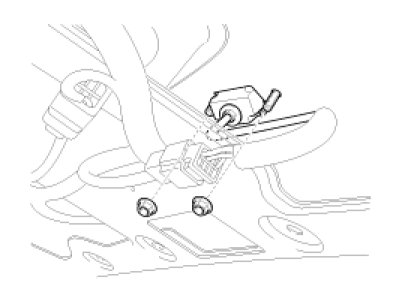

2. Remove the connector and nuts(2EA).

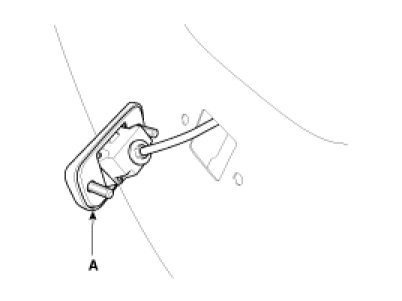

3. Remove the back view camera(A).

Installation

1. Install the back view camera.
2. Install the tailgate trim.
