Reset Procedure
Initialization-auto LearningAL starts every time, the vehicle was parked long enough to change or permute wheels (19min), and is traveling again at a speed that ensures that the WE sensors are transmitting.
AL is automatically considering all WE identifiers received and extracts, based on statistical evaluation, IDs belonging to the WEs mounted on the vehicle. If new (unknown) IDs are detected, their recurrence will be tracked by AL.
AI compares the acceleration reported by the wheel unit to the vehicle speed to rule out transmissions received from neighboring vehicles traveling with different speeds.
A WE sensor identifier is assigned to the vehicle when 8 RF telegrams have been received while driving above 25km/h.
Sensor Registration
CAUTION:
If the sensor registration procedure is not performed by GDS after replacing the TPM sensor or Receiver, TPMS is not operated.

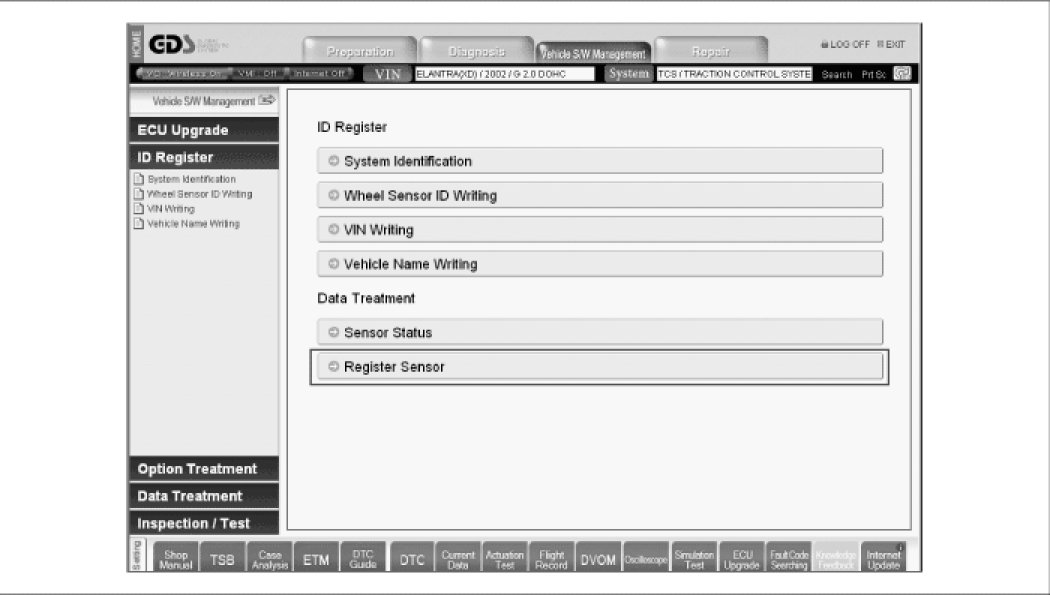

1. Install GDS (Global Diagnostic System) and GDS TPMS module to vehicle.
2. Select the model and perform the sensor registration procedure according to instruction of the GDS as follows.

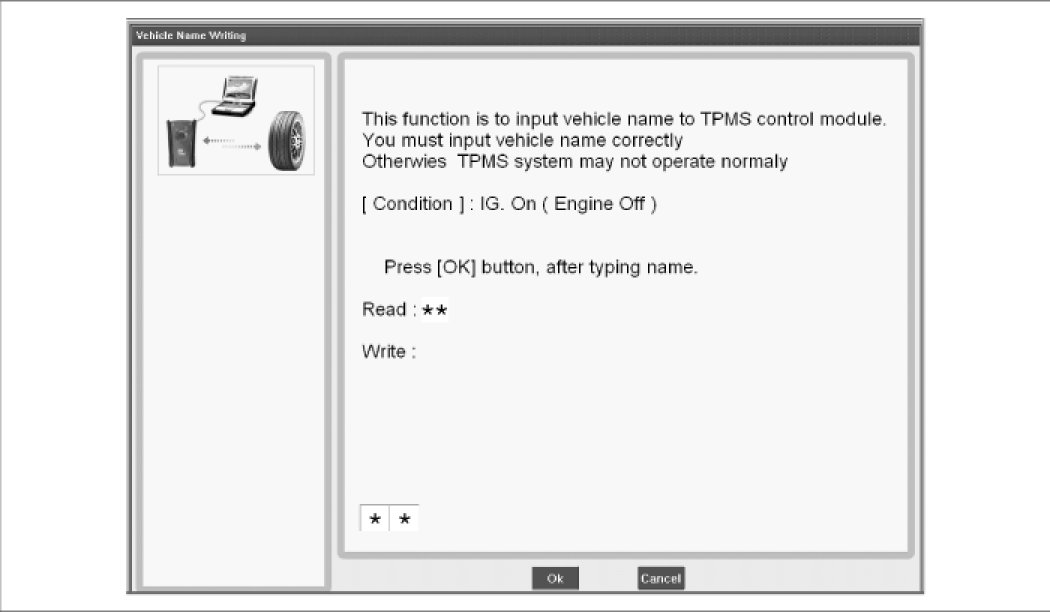

Vin And Vehicle Name Writing
1. Install GDS (Global Diagnostic System) and GDS TPMS module to vehicle.
2. Select the model and perform the VIN and vehicle name writing procedure according to instruction of the GDS as follows.
[VIN Writing]
