Cylinder Head
Cylinder HeadInstall the cylinder head bolts with washers.
Tighten the 10 cylinder head bolts, in several passes, in the sequence shown.
Tightening torque :
1st step
17.7 - 21.6 N.m (1.8 - 2.2 kgf.m, 13.0 - 15.9 lb-ft)
2nd step
90°~95°
3rd step
100°~105°

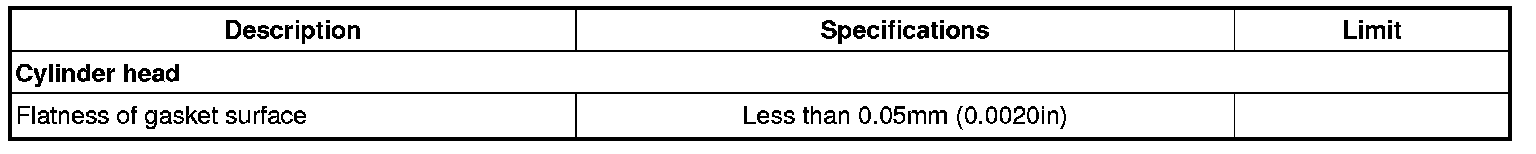

CAUTION: Always use new cylinder head bolts.SURFACE VARIATION - WARPAGE
