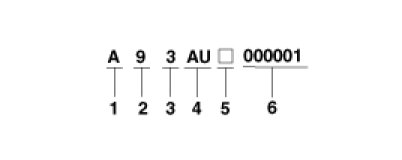

Automatic Transmission/Transaxle Number
Automatic 1.
Model
A.
A : A4CF1
B.
B : A4CF2
2.
Production year
- 9 : 2009, A : 2010, B : 2011, C : 2012, D : 2013.
3.
Gear ratio
A.
6 : 4.619
B.
3 : 4.375
4.
Detailed classification
A.
AU : 1.6
B.
BV : 2.0
5.
Spare
6.
Transaxle production sequence number
- 000001 - 999999
