B1237 Ambient Temperature Sensor Short (Low) - Inspection/Repair:_:Component Inspection

Component Inspection

Check ambient sensor
1. Ignition "OFF".
2. Disconnect ambient sensor and Connect A/C control unit main harness connector.

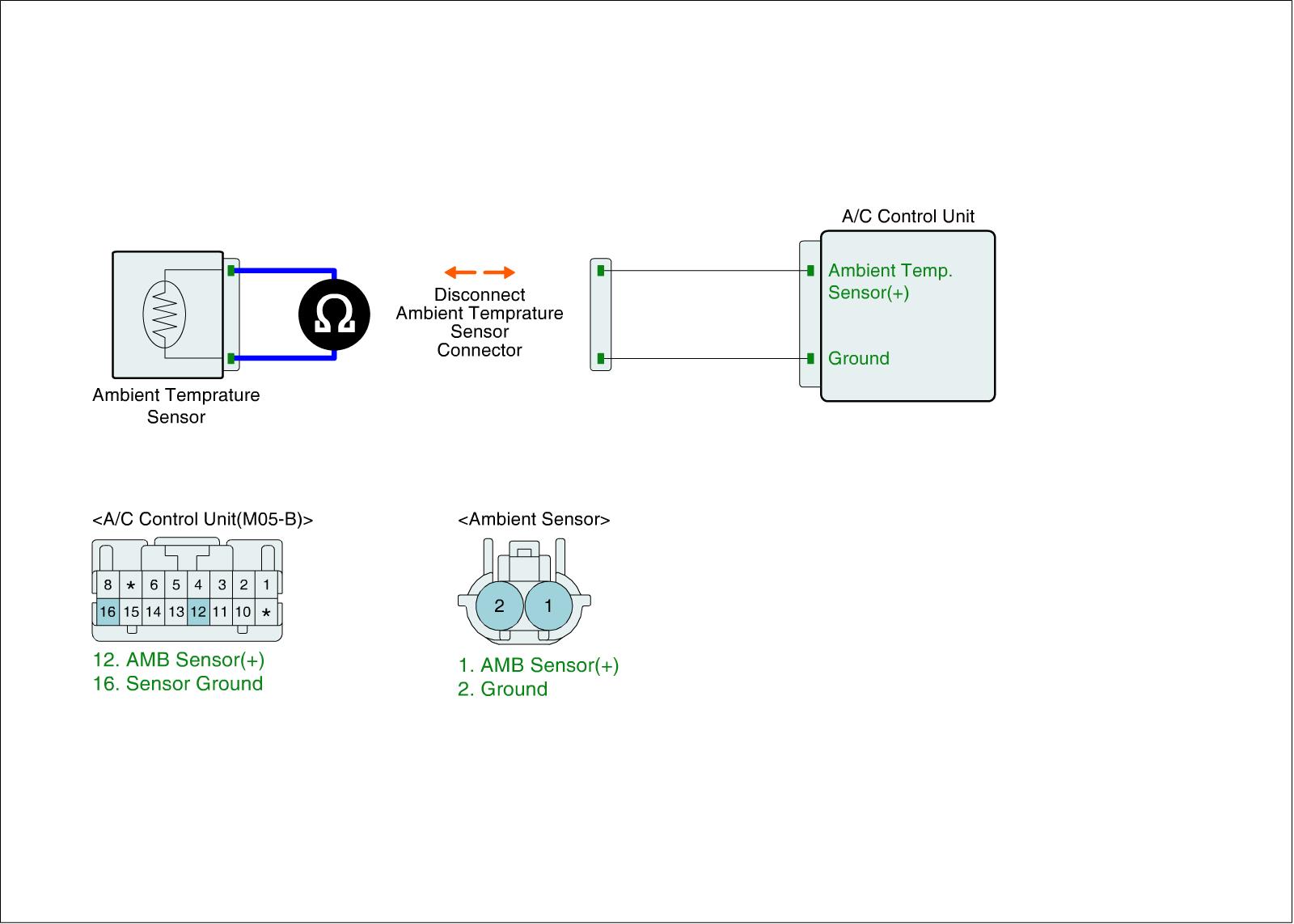

3. Measure resistance between Signal(+) terminal of ambient sensor harness connector and Sensor ground harness connector.(Component side)

Specification :Refer the specifications in fig.1




Fig.1) ** Specifications : Resistance value of ambient sensor as a function of temperature.





4. Is "resistance" display near the specified value?





Check A/C-ECU
1. Ignition "OFF".
2. Disconnect Ambient Temp. sensor (+) and Connect A/C control unit main harness connector.
3. Ignition "ON"(ENGINE "OFF").

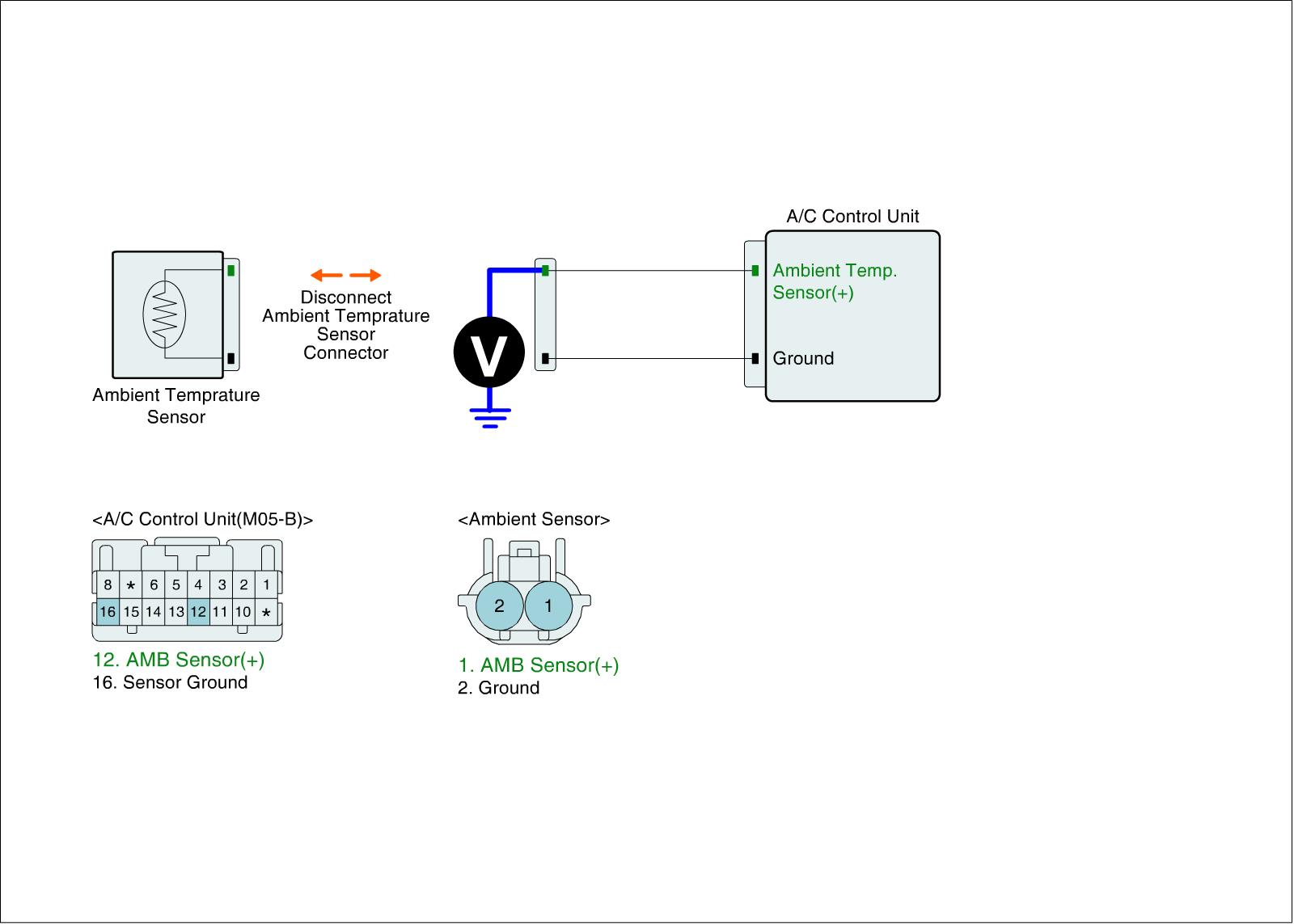

4. Measure voltage between Signal(+) terminal of Ambient Temp. sensor(+) harness connector and chassis ground.(Component side)

Specification :Approx. 5V




5. Is "voltage" display near the specified value?
