System Specifications

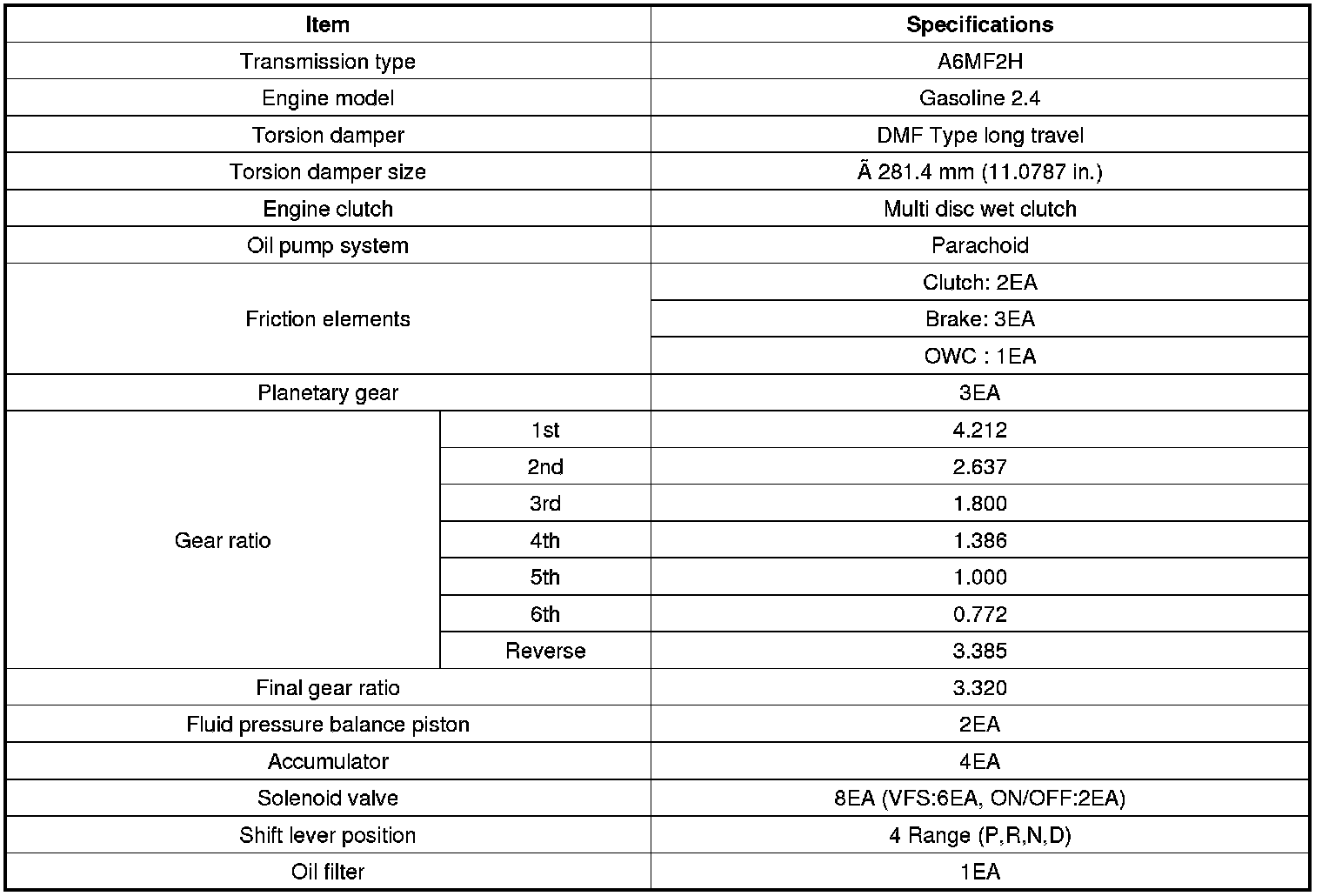

Specifications





VFS: Variable Force Solenoid
Sensors
Input Speed Sensor
Type: Hall effect sensor
Specifications






Output Speed Sensor
Type: Hall effect sensor
Specifications






Oil Temperature Sensor
Type: Negative thermal coefficient type
Specifications






Inhibitor Switch
Type: Combination of output signals from 4 terminals
Specifications






Electric Oil Pump (EOP)
Specifications






Oil Pump Unit (OPU)
Specifications






Solenoid Valves
Direct control VFS [26/B, E/C]
Control type : Normal low type






Direct control VFS [UD/B, OD/C, 35R/C]
Control Type : Normal high type






Line Pressure Control VFS
Control type : Normal high type






ON/OFF Solenoid Valve (SS-A, SS-B)
Control type : Normal low type

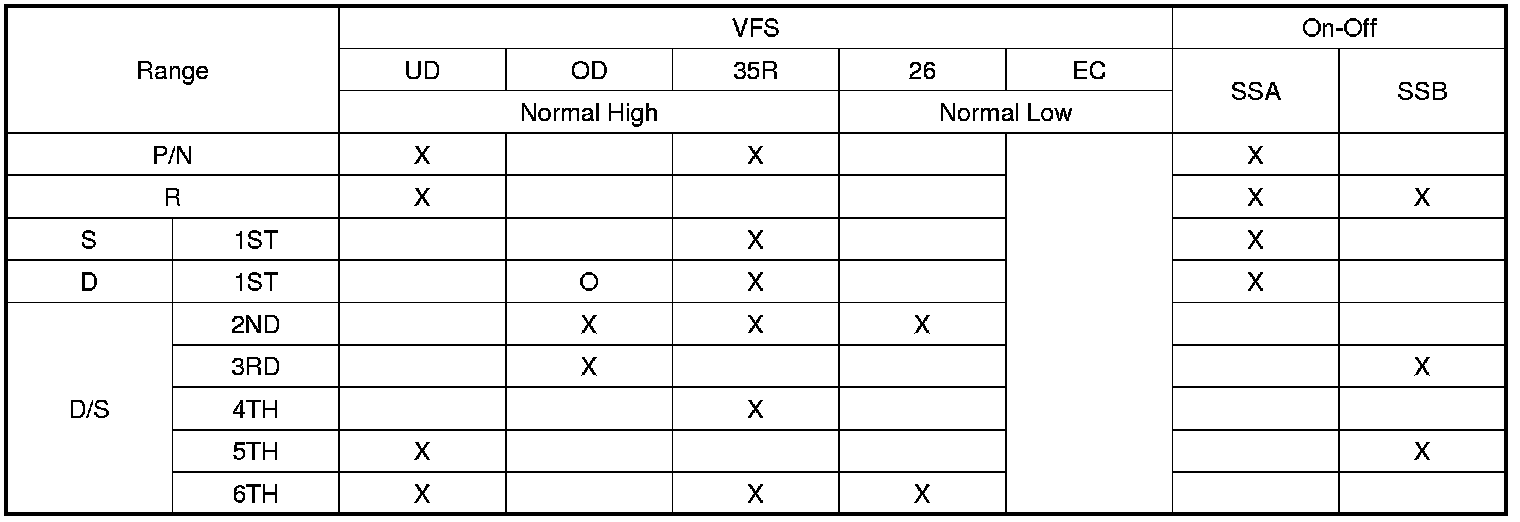

Solenoid Valve Operation Table





Failsafe of solenoid valve failure: 4th gear hold.

NOTE:
X : Solenoid is energized.
O : ON (8 kph [up]), OFF (6 kph [down])

Tightening Torques






Lubricants





Sealant
