Immobilizer System
DIAGNOSIS OF IMMOBILIZER FAULTS -
Communication between the PCM(ECM) and the SMARTRA.
-
Function of the SMARTRA and the transponder.
-
Data (stored in the PCM(ECM) related to the immobilizer function.

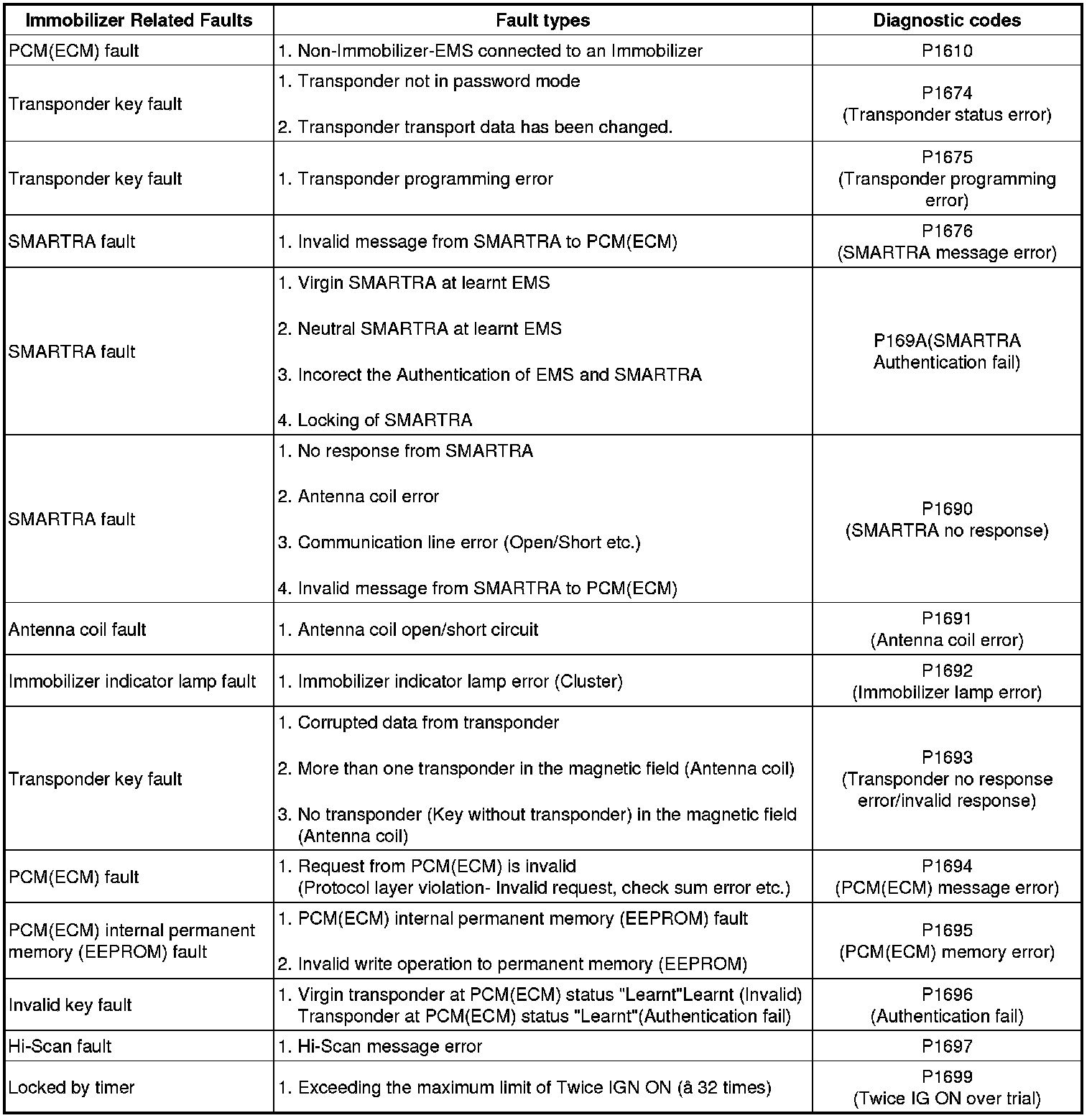

The following table shows the assignment of immobilizer related faults to each type:

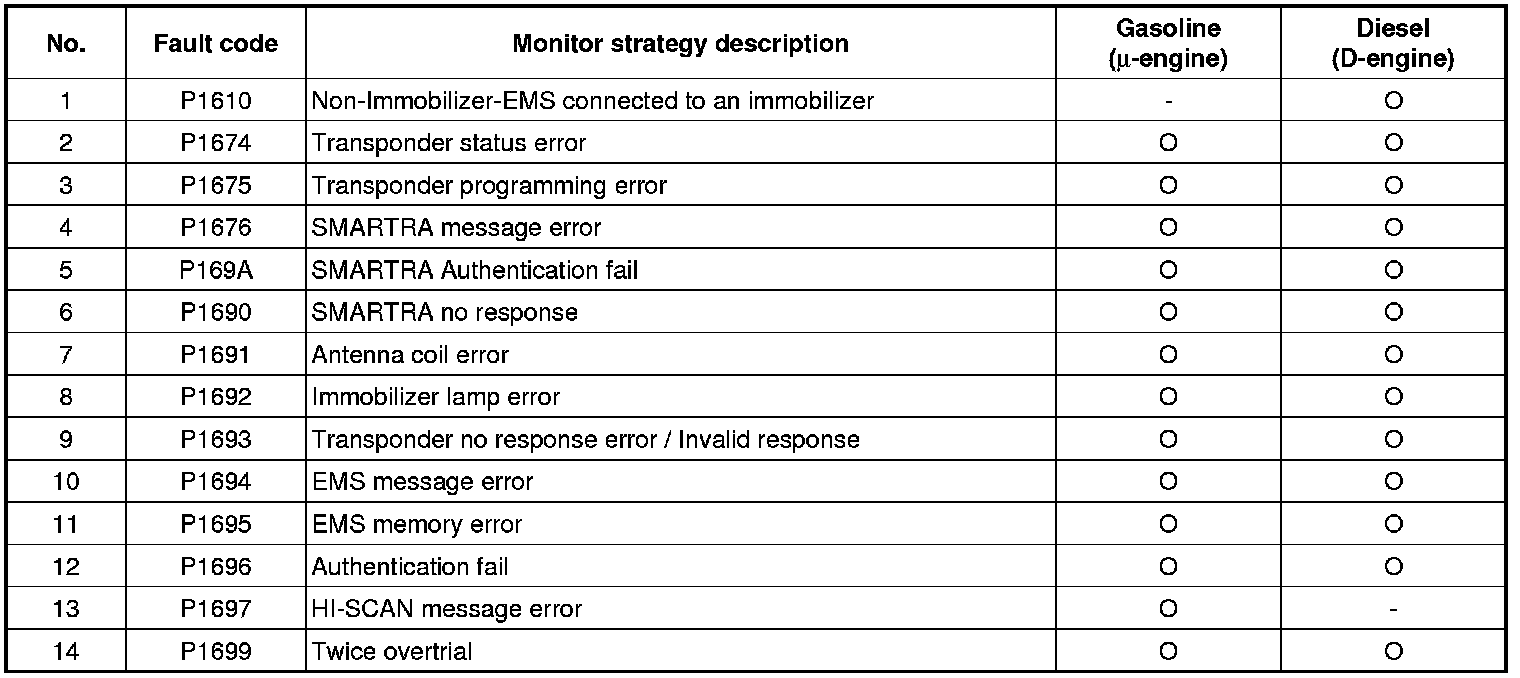

IMMOBILIZER (SMARTRA) DTC LIST
