Navigation System: Service and Repair





Removal

Navigation head unit
1. Disconnect the negative (-) battery terminal.

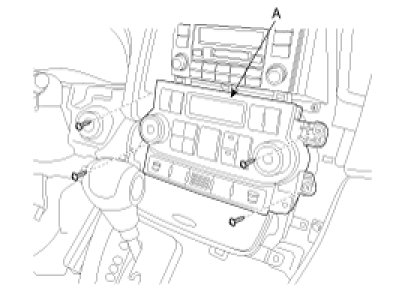

2. Remove the center facia panel, console lower cover, center air vent, switches, tray and heater control panel (A).




3. Remove the mounting screws then remove the navigation unit(A).

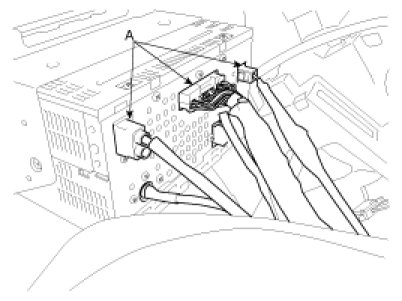

4. Disconnect the connectors and cables(A).





Navigation antenna
1. Remove the roof trim.

Installation

Navigation head unit
1. Install the navigation unit after connecting the connectors and cables.
2. Install the center facia panel, console lower cover, center air vent, switches, tray and heater control panel.
3. Check the navigation system.
