Axle Nut

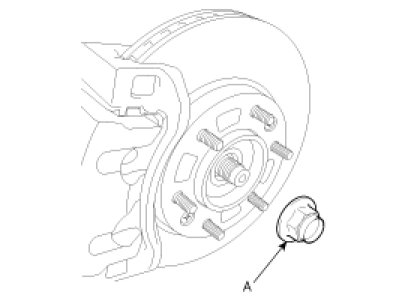

Axle NutRemove the driveshaft lock nut (A).
Tightening torque Nm (kgf,m, lb-ft)
245 - 275 (24.5 - 27.5, 177 - 199)
