Component Inspection
Engine ControlP0077 Intake Valve Control Solenoid Circuit-High (Bank 1) - Inspection/Repair:_:Component InspectionComponent InspectionCheck OCV resistance 1.
IG "OFF".
2.
Disconnect OCV connector.
3.

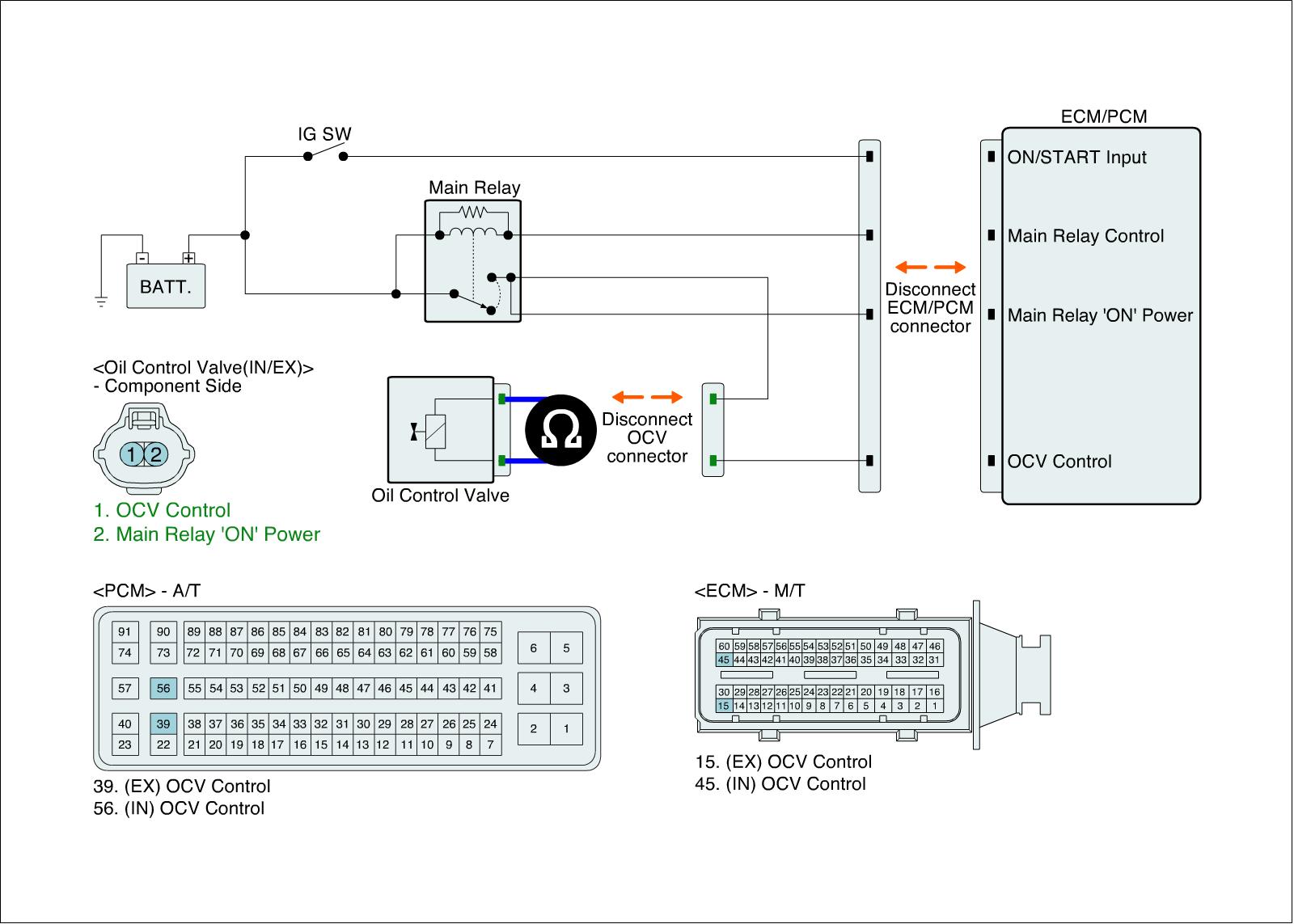

Measure resitance between terminal 1 and 2 of OCV connector.(Component Side)
Specification : 4.
Is the measured resistance within specification ?
