Repair Procedures

Replacement

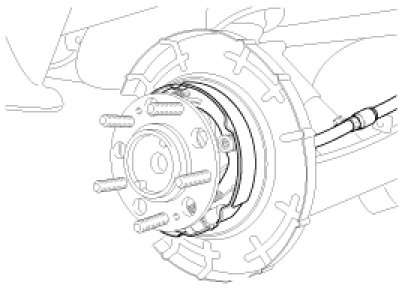

1. Remove the rear wheel & tire.

Tightening torque :
88.3 - 107.9 N.m (9.0 - 11.0 kgf.m, 65.1 - 79.6 lb-ft)

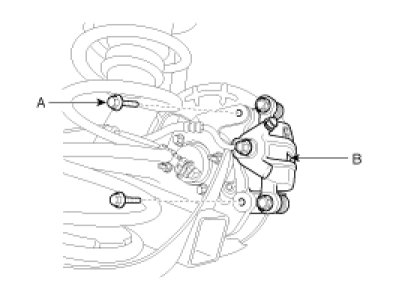

2. Remove the brake caliper assembly (B) from the torsion beam axle by loosening the bolts (A).

Tightening torque :
63.7 - 73.5 N.m (6.5 - 7.5 kgf.m, 47.0 - 54.2 lb-ft)




3. Loosen the screw (A).

Tightening torque :
4.9 - 5.9 N.m (0.5 - 0.6 kgf.m, 3.6 - 4.3 lb-ft)

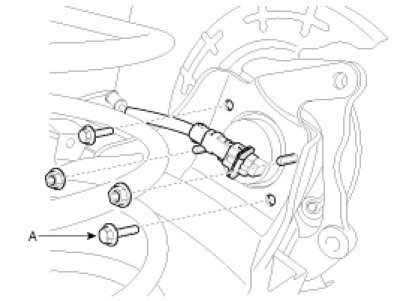

4. Remove the wheel speed sensor cable and the loosening the mounting bolts.

Tightening torque :
58.8 - 68.6 N.m (6.0 - 7.0 kgf.m, 43.4 - 50.6 lb-ft)




5. Remove the wheel speed sensor cable and parking break cable mounting bracket bolts.




6. Remove the rear hub unit bearing.




7. Remove the parking brake cable.




8. Remove the rear shock absorber from the torsion beam axle by loosening the nut.

Tightening torque :
117.7 - 137.3 N.m (12.0 - 14.0 kgf.m, 86.8 - 101.3 lb-ft)




9. Remove the torsion axle from the body loosening the bolts.

Tightening torque :
117.7 - 137.3 N.m (12.0 - 14.0 kgf.m, 86.8 - 101.3 lb-ft)




10. Installation is the reverse of removal.
