Electrical Equipment

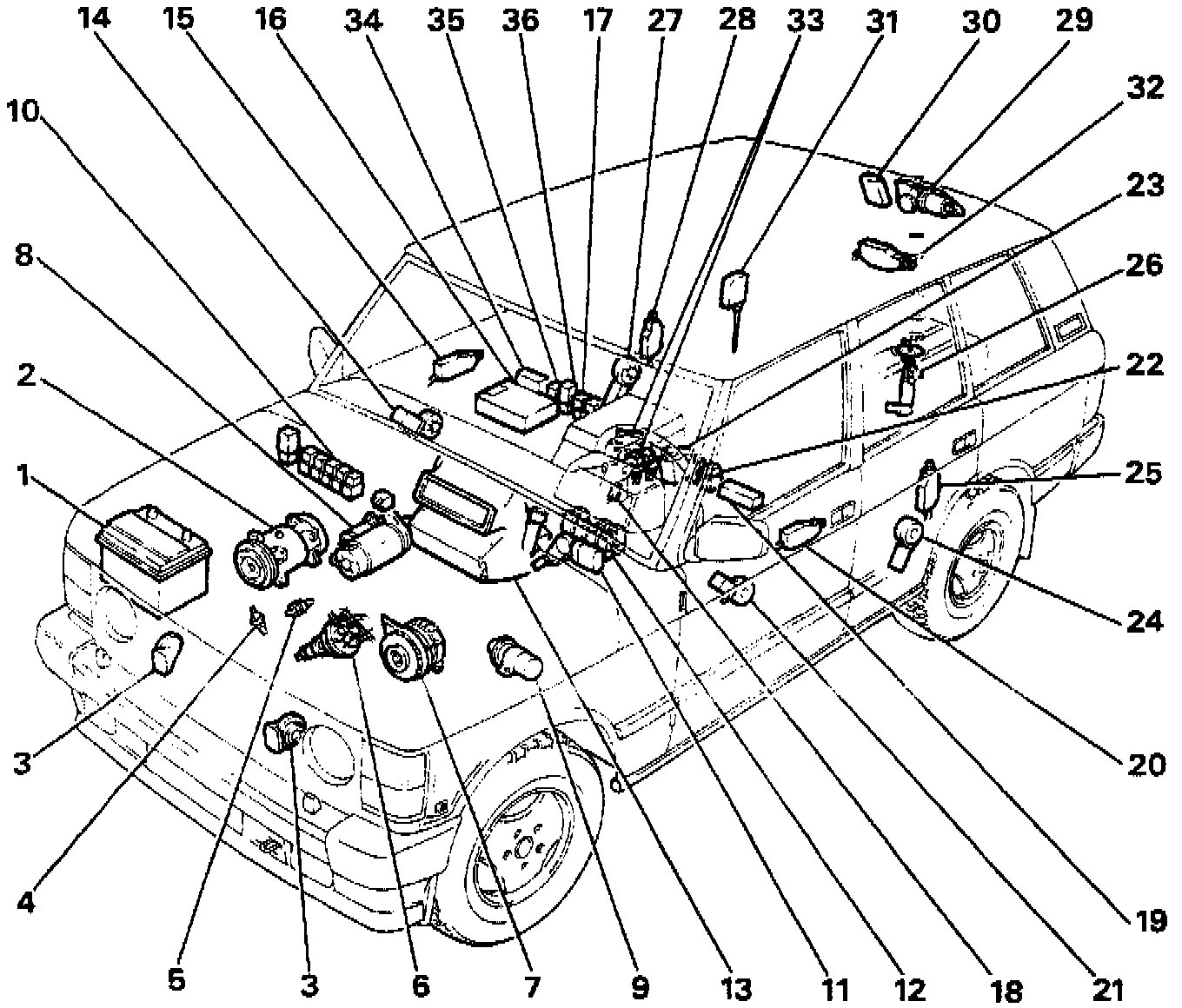

Electrical Component Locations:





1. Battery
2. Air conditioning compressor
3. Horns
4. Oil pressure switch
5. Water temperature switch
6. Electronic distributor
7. Alternator
8. Starter motor
9. Coil
10. Relays
11. Wiper motor-front screen
12. Relays/delay units
13. Heater
14. Window lift motor (front right hand door)
15. Door lock actuator (front right hand door)
16. Electronic control unit (EFI)
17. EFI relays (two)
18. Parkbrake warning light switch
19. Seat adjustment fusebox
20. Door lock actuator (front left hand door)
21. Window lift motor (front left hand door)
22. Seat adjustment relays (two)
23. Inertia switch
24. Window lift motor (rear left hand door)
25. Door lock actuator (rear left hand door)
26. Electrical in-tank fuel pump
27. Window lift motor (rear right hand door)
28. Door lock actuator (rear right hand door)
29. Wiper motor-rear screen
30. Radio aerial amplifier
31. Fuel filler flap lock actuator
32. Tailgate lock actuator
33. Window lift relays and one touch control unit
34. Emission maintenance reminder
35. Cruise control relay (neutral lockout)
36. Condenser fan timer unit
