Alternator

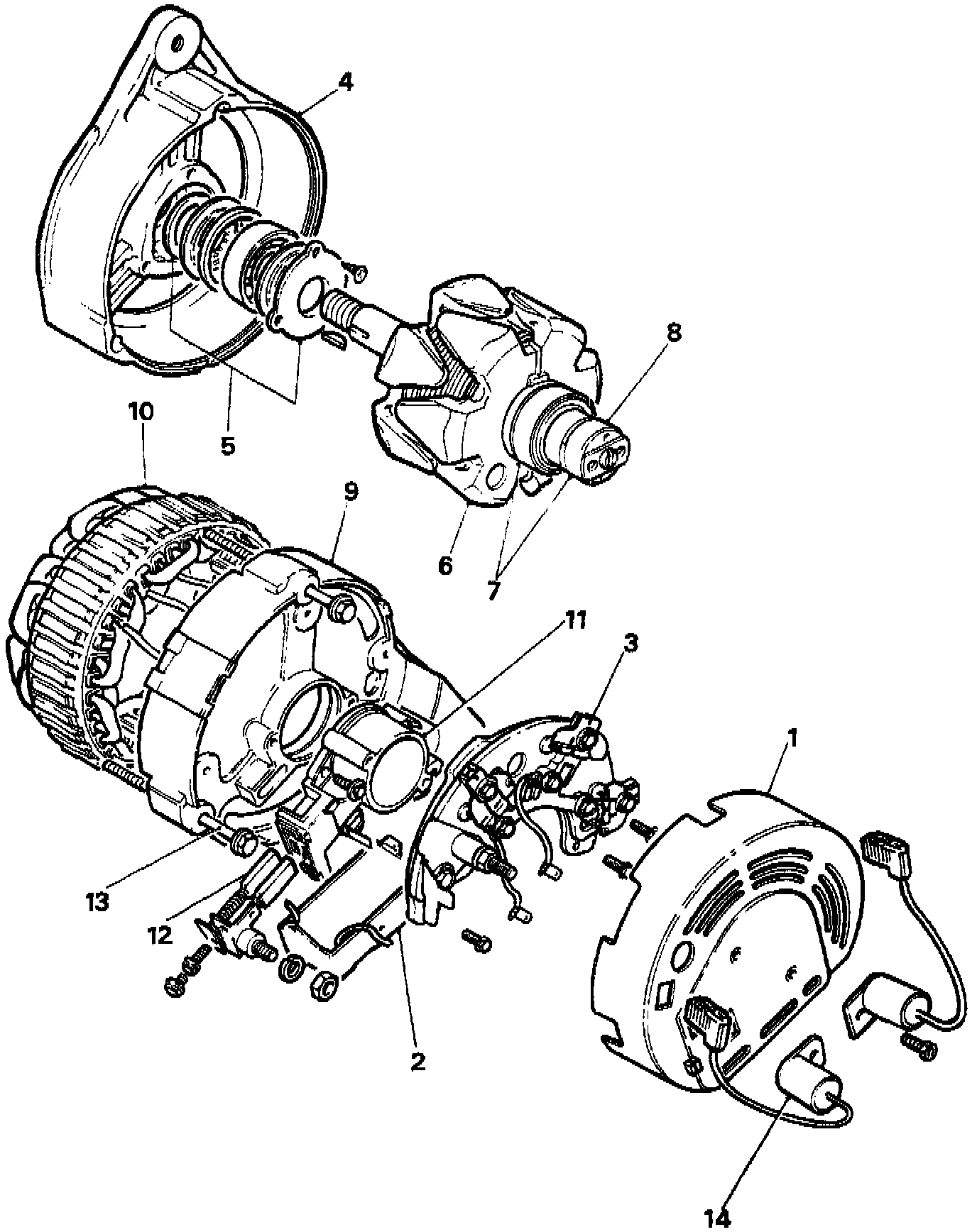

ALTERNATOR-LUCAS-TYPE A133/80

Alternator:

1. Cover
2. Regulator
3. Rectifier
4. Drive end bracket
5. Bearing assembly
6. Rotor
7. Slip ring end bearing
8. Slip rings
9. Slip ring end bracket
10. Stator
11. Brush box
12. Brushes
13. Through bolts (three)
14. Suppressors
