Automatic Transmission/Transaxle

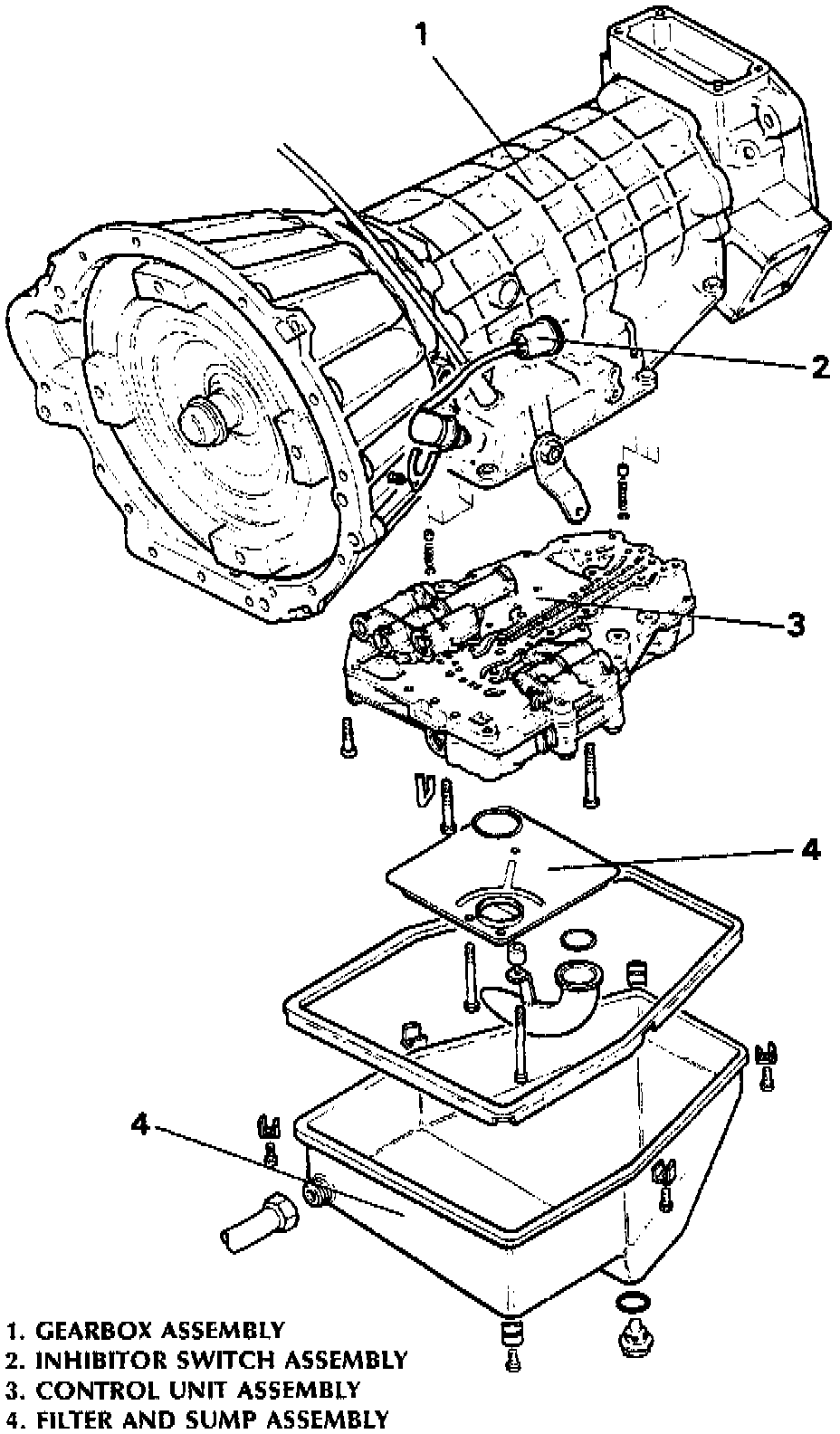

Transmission, Inhibitor Switch, Valve Body, Filter, Pan:

Transmission, Inhibitor Switch, Valve Body, Filter, Pan

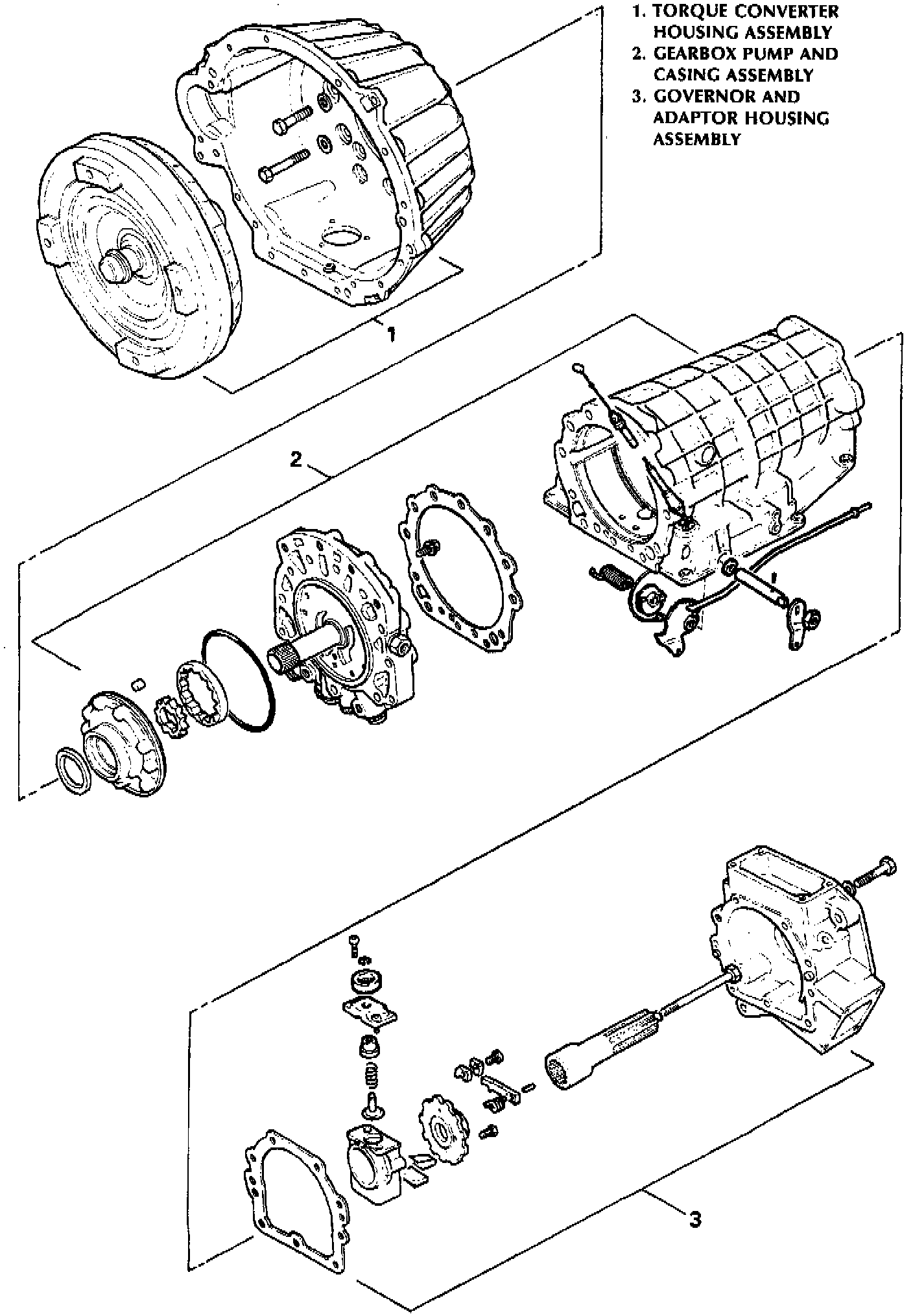

Torque Converter, Oil Pump, Main Case, Governor, Extention Housing:

Torque Converter, Oil Pump, Main Case, Governor, Extention Housing

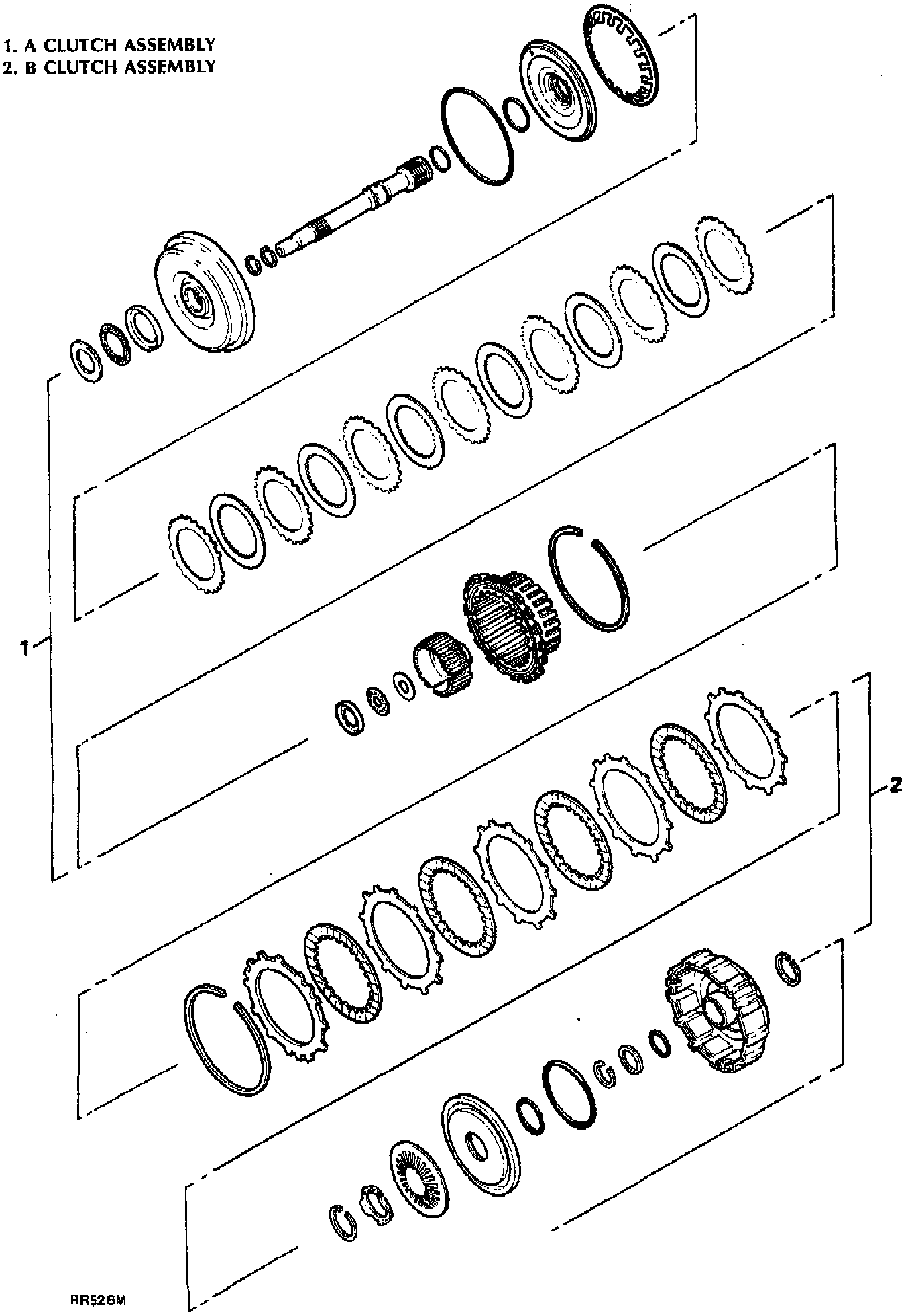

A & B Clutch Assemblies:

A & B Clutch Assemblies

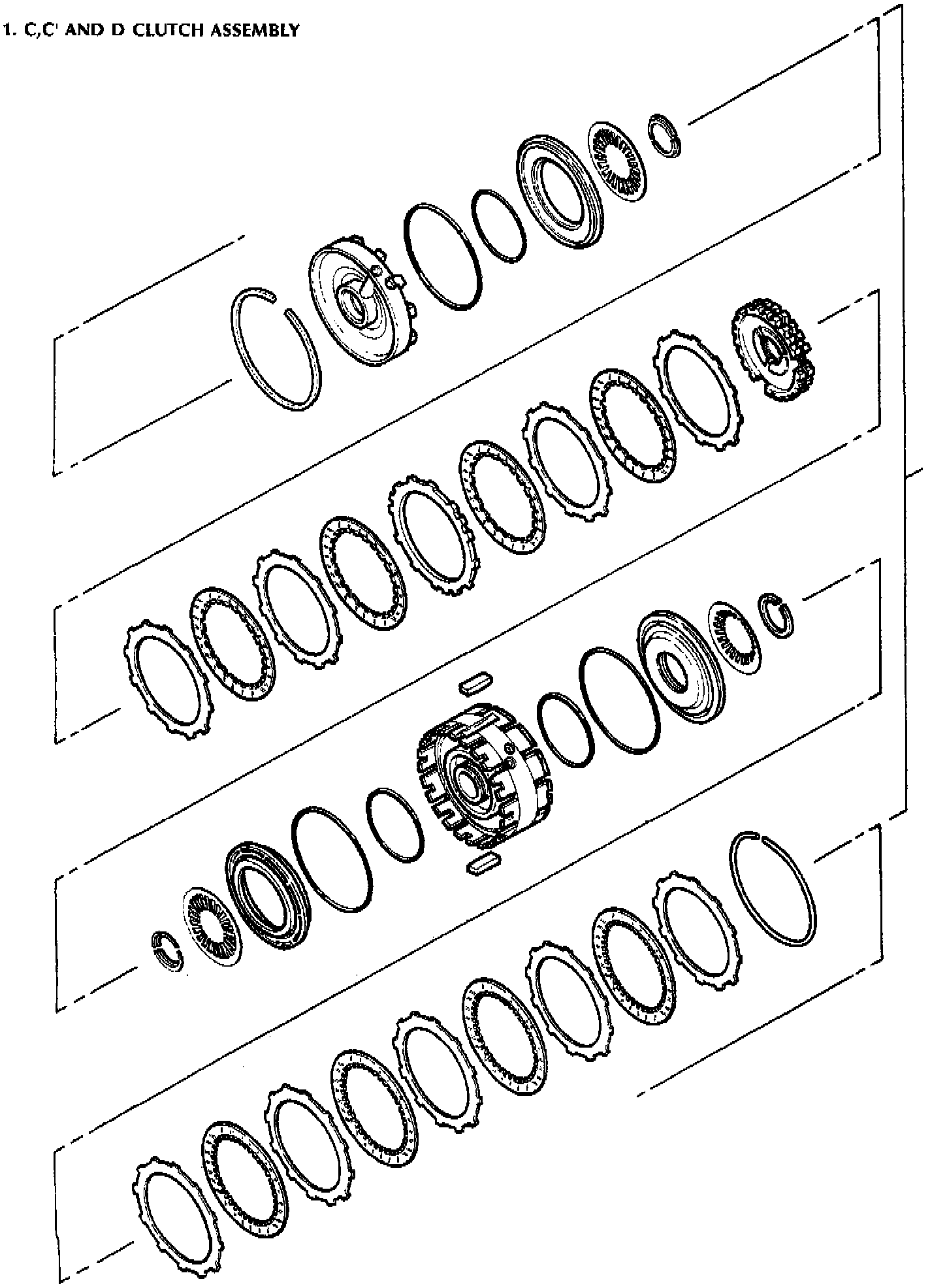

C, C1, & D Clutch Assemblies:

C, C1, & D Clutch Assemblies

Freewheel & 4th Gear Assemblies:

Freewheel & 4th Gear Assemblies

E & F Clutch Assemblies:

E & F Clutch Assemblies
