Brake Master Cylinder

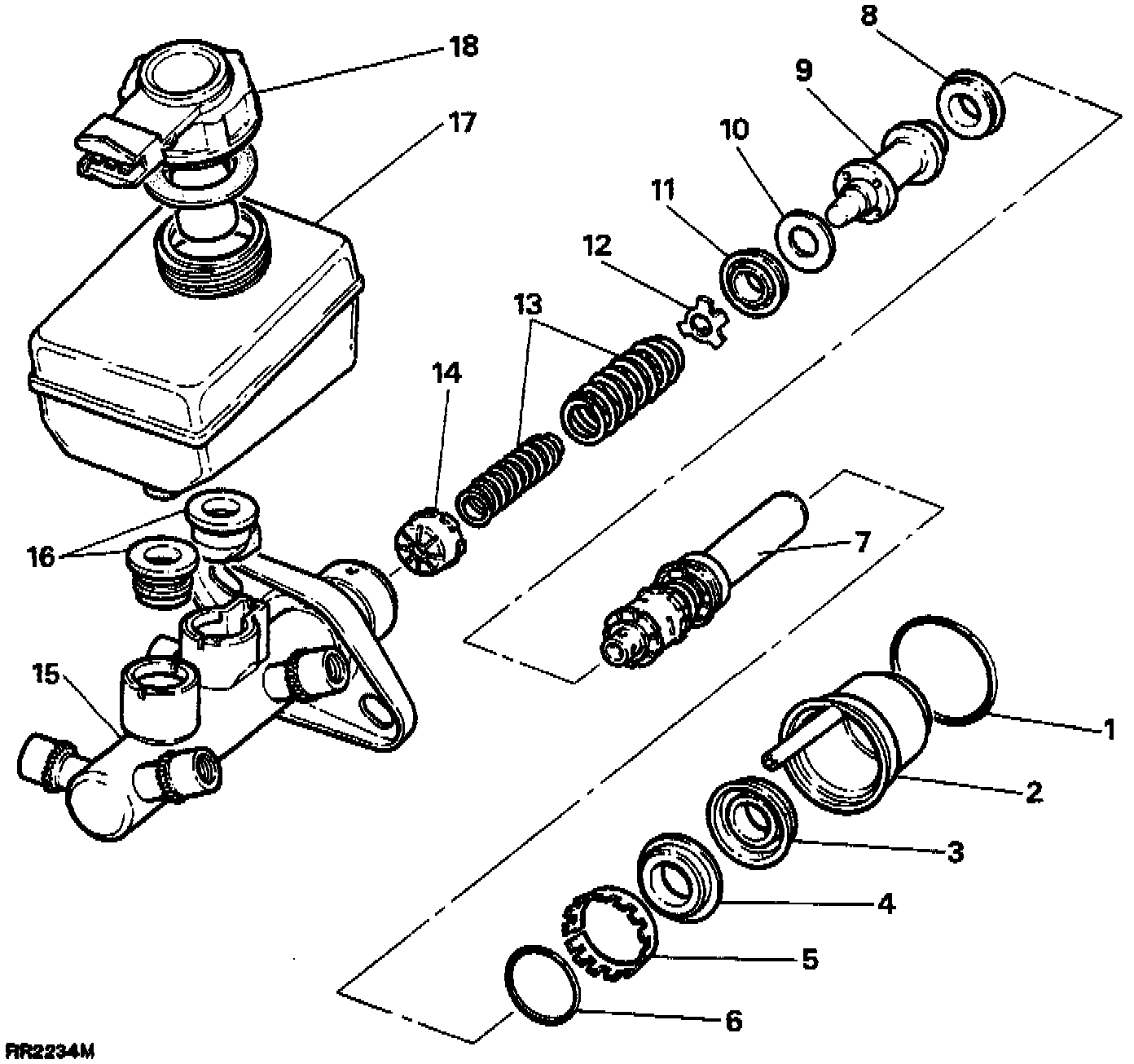

KEY TO MASTER CYLINDER
1. Water ingress seal
2. Transfer housing
3. Vacuum seal
4. Guide ring
5. Retaining ring
6. O-ring seal
7. Primary plunger assembly
8. L-seal
9. Secondary plunger
10. Washer
11. Recuperating seal (primary cup)
12. Seal retainer
13. Springs (2 off)
14. Swirl tube
15. Master cylinder body
16. Reservoir seals
17. Reservoir
18. Low fluid level switch and cap

NOTE: Thoroughly check that no debris of any description is lodged in any of the fluid passageways and drillings. If debris is found, carefully remove, re-clean the cylinder and re-check.
