Instrument Panel - Back

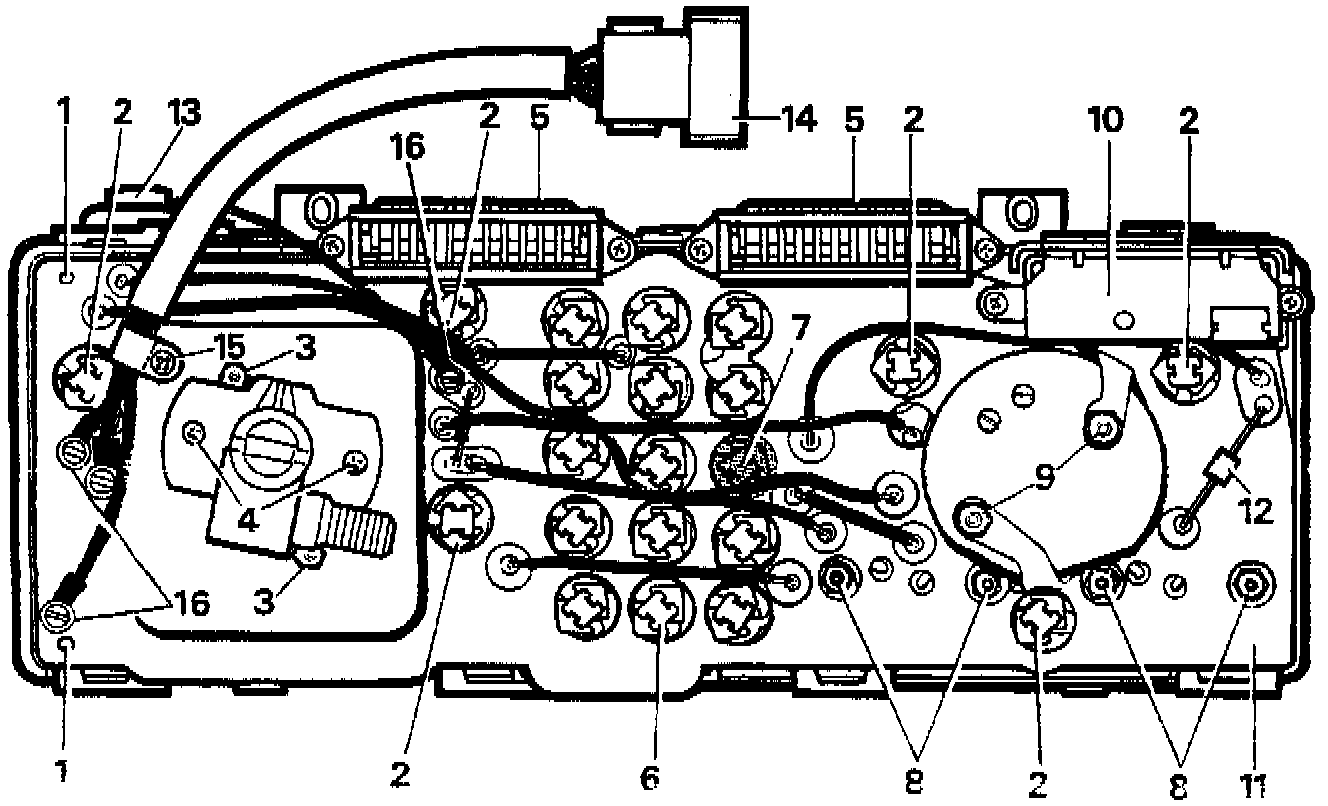

Instrument Panel Rear View:





1. Locating pegs
2. Panel light bulbs
3. Speedometer securing screw
4. Speedometer drive securing screws
5. Harness connectors
6. Warning light bulbs (14)
7. No charge warning light bulb (red holder)
8. Temperature and fuel gauge unit securing nuts
9. Tachometer securing nuts
10. Multi-function unit
11. Printed circuit
12. Pull-up resistor-high temperature gearbox oil
13. Photo transistor
14. Single multi-plug
15. Single multi-plug securing screw
16. Single multi-plug wiring connecting screws (5)
