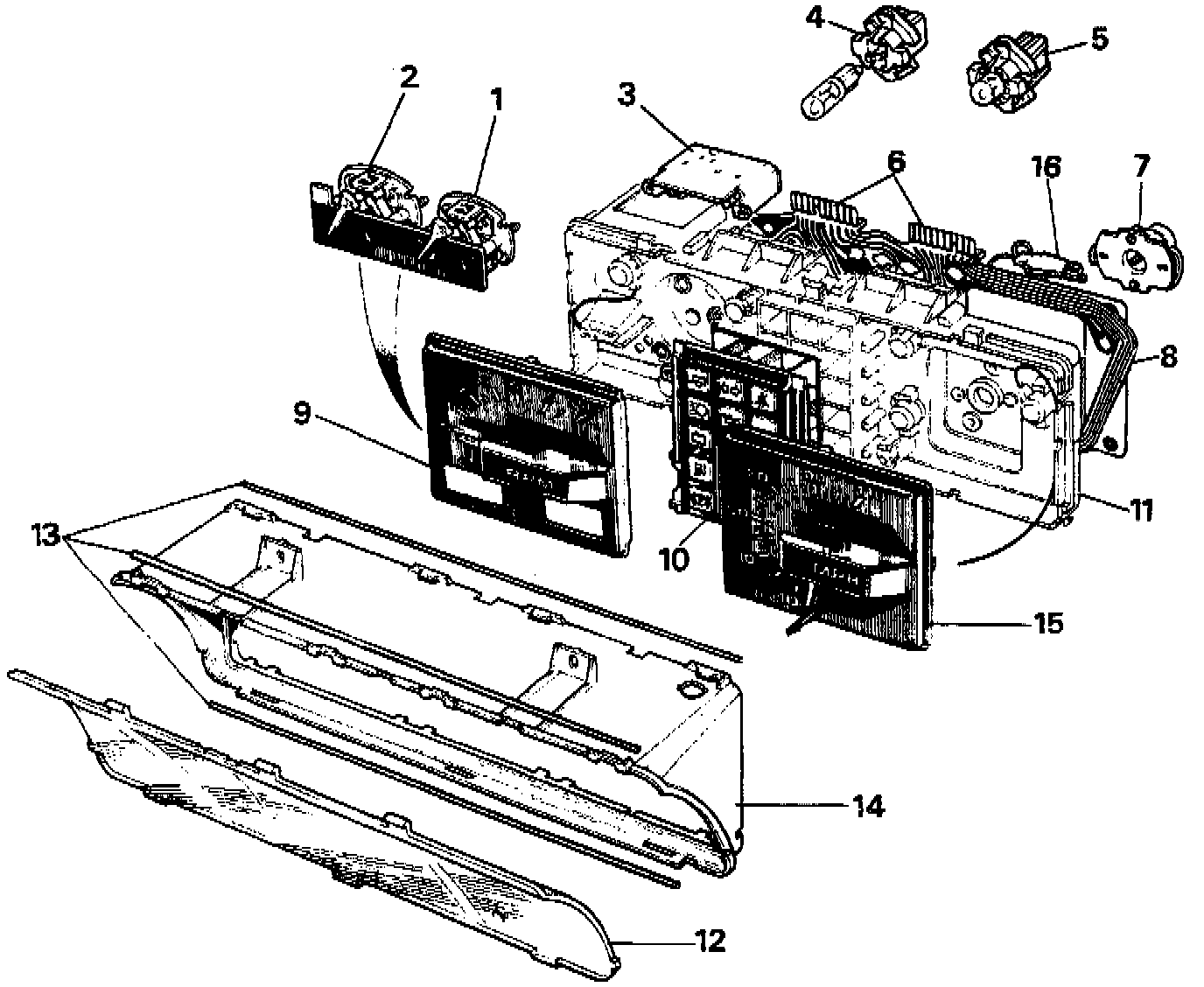

Instrument Panel - Front

Instrument Panel:

1. Fuel gauge
2. Temperature gauge
3. Voltage stabilizer
4. Ignition warning bulb (with separate red holder unit)
5. Panel/warning lights bulb/holder
6. Printed circuit input tags (for harness connection)
7. Speedometer drive unit
8. Printed circuit
9, Tachometer
10. warning lights panel
11. Instrument case (front)
12. Curved lens
13. Wire connecting clips
14. Binnacle housing
15. Speedometer
16. Photo transistor automatic dimming warning lights
