Parking Brake System

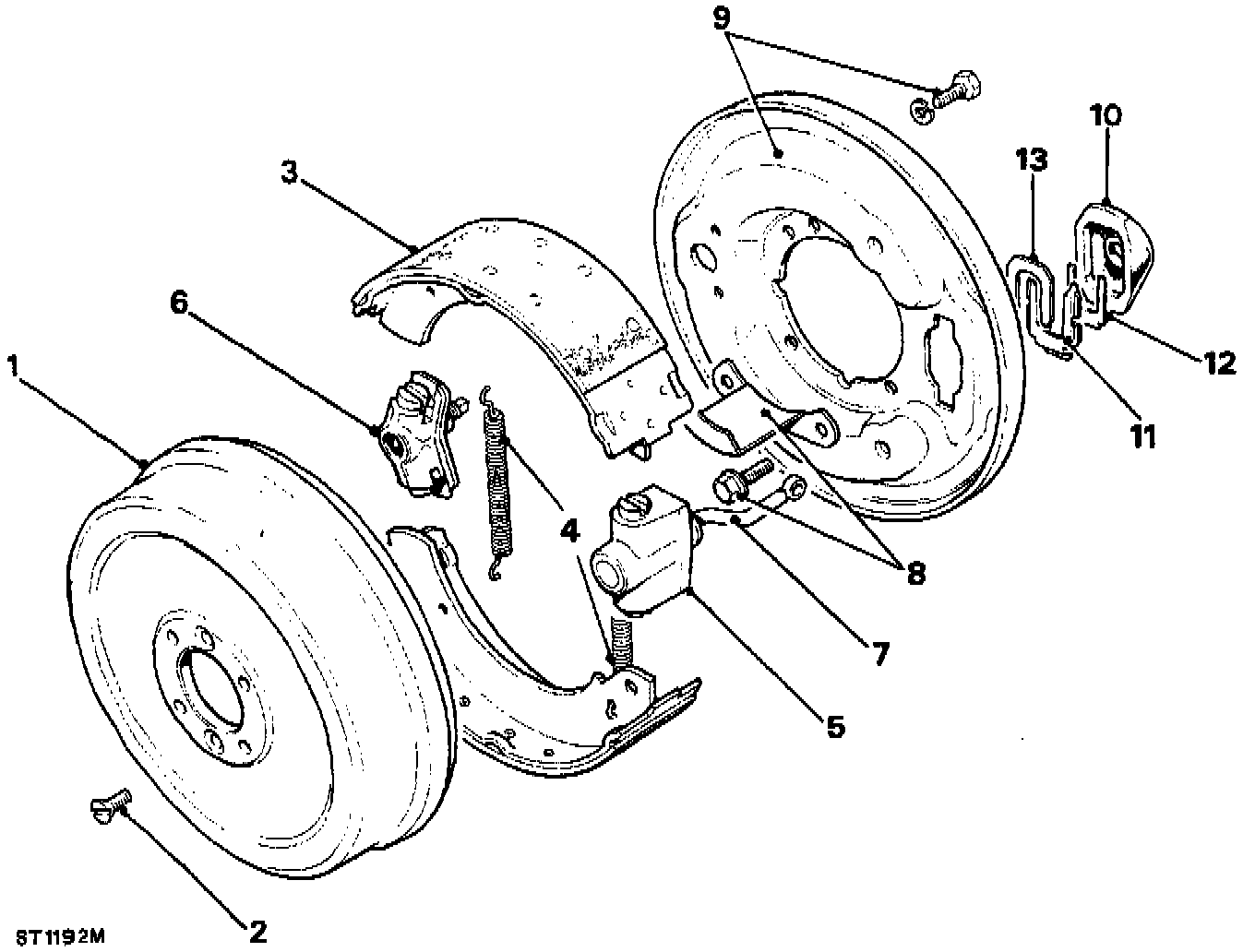

KEY TO PARKING BRAKE 1.
Brake drum 2.
Brake drum retaining screws
3.
Brake shoes 4.
Brake shoes pull-off springs
5.
Expander assembly
6.
Adjuster assembly
7.
Draw link
8.
Oil catcher
9.
Back plate and retaining bolts
10.
Dust cover
11.
Locking plate
12.
Packing plate
13.
Spring plate
