Fuse: Locations

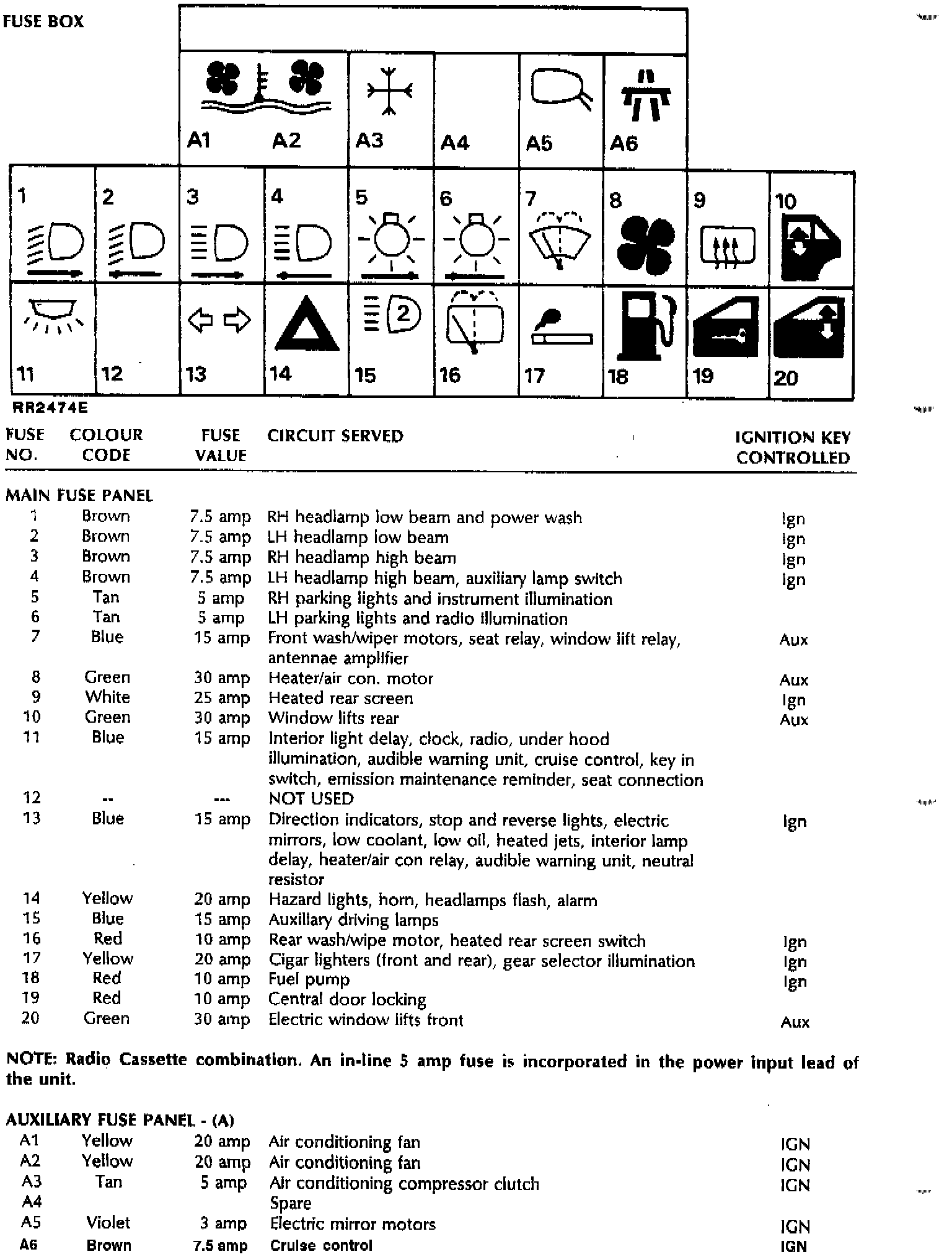

Fuse ID:

FUSE ID

ADDITIONAL FUSES

Sunroof Fuse:

Sunroof fuse (1) is a 20 amp, yellow, blade type located on the side of the sunroof main relay, which is located on the steering column support bracket, located behind the lower dash panel.

Heated Windshield Fuse:

Heated front screen (2) has two 25 amp white, blade type fuses mounted adjacent to the bank of steering column mounted relays. Pull fuse holder off its mounting blade to gain access to fuses.
