Relays, Timers, Control Units
Relay/Diode/Timer/Delay Unit ID:

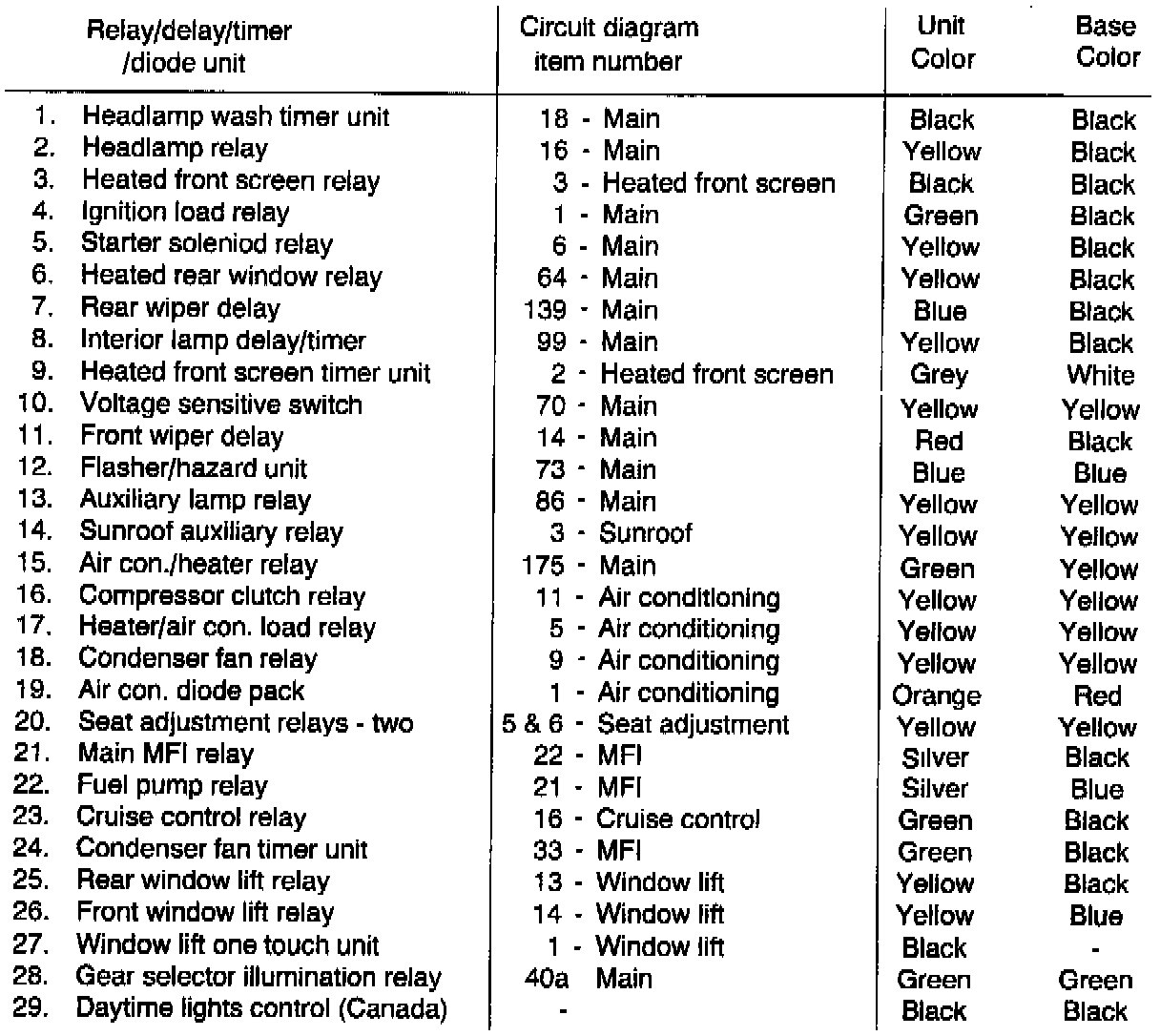

Key to Relays
Use this key to ID the relays in the following images.
Seat Relays:
Seat Relays
Relays - MFI, Fuel Pump, Cruise Control, & Condenser Fan Timer:
MFI Relay, Fuel Pump Relay, Cruise Control Relay, Condenser Fan Timer Unit
Relays Under Glove Box:
Relays Under Glove Box
Headlamp Washer Timer Unit:
Headlamp Washer Timer Unit
Left Footwell Relays:
Left Footwell Relays
Relays Under Steering Column:
Relays Under Steering Column
Right Footwell Relays:
Right Footwell Relays
