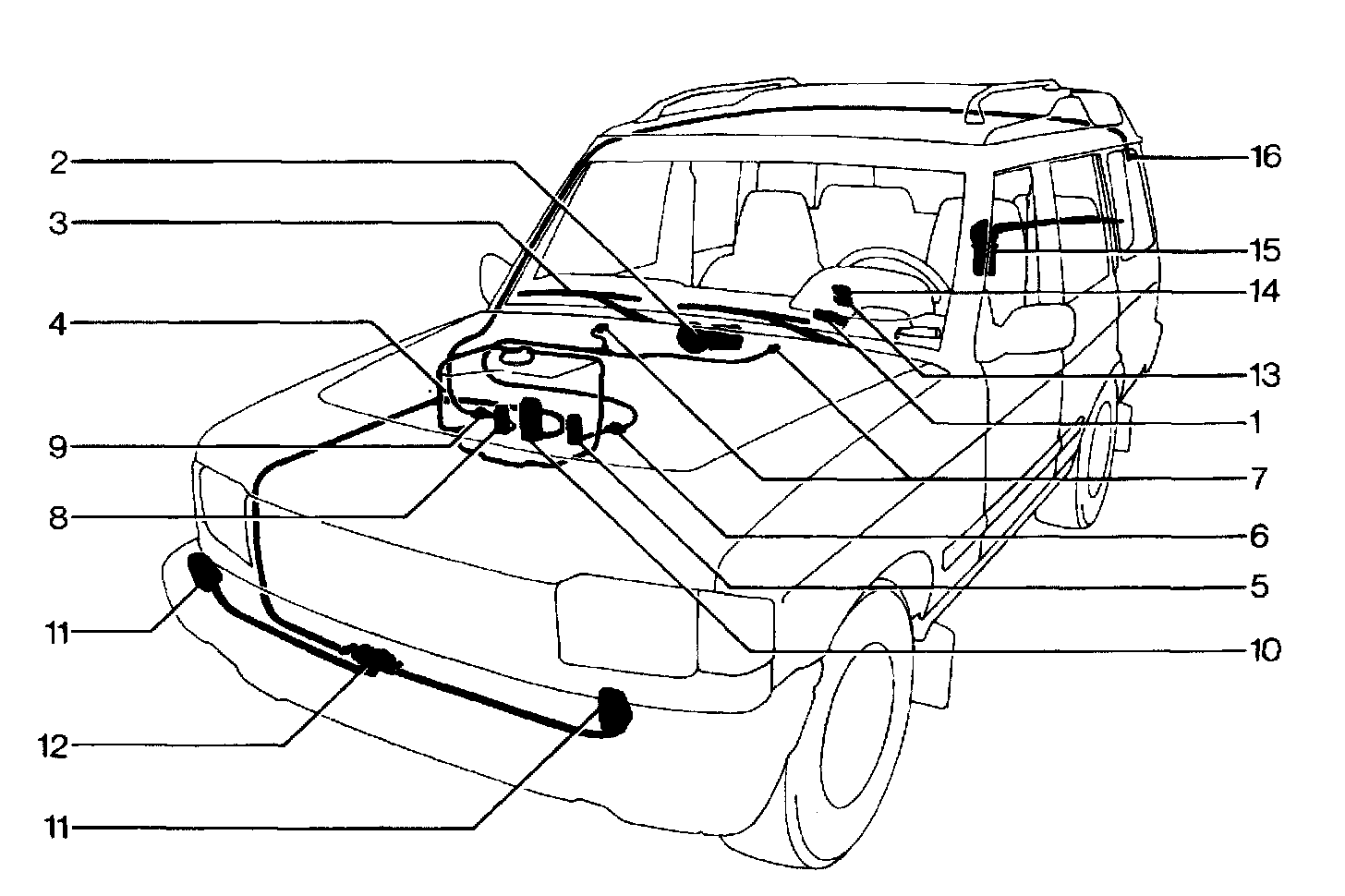

Wiper and Washer Systems: Locations
1.
Multi-switch
2.
Wiper motor
3.
Wiper arm/blade
4.
Washer reservoir
5.
Windscreen washer motor/pump
6.
Non return valve
7.
Washer jet
8
Rear window washer motor pump
9.
Non return valve
10.
Headlamp power wash motor/pump
11.
Headlamp power washer jet
12.
Non return valve
13.
Rear window wiper switch
14.
Rear window washer switch
15.
Rear window wiper motor, arm and blade
16.
Washer jet
