Seat Back: Service and Repair

Rear Seat Squab

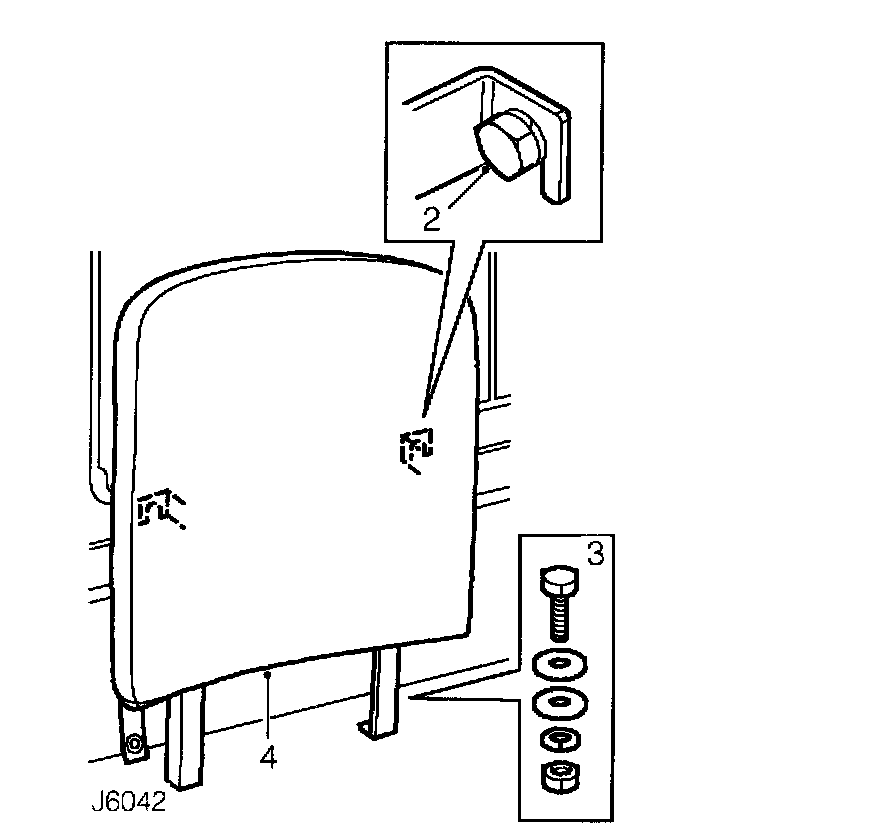

Remove





1. Release seat cushion stowage strap and lower seat cushion.
2. Loosen 2 bolts securing seat squab brackets to body side.
3. Remove 2 bolts, plain washers, spring washers and nuts securing seat squab to wheel arch.
4. Lift and release brackets from retaining bolts and remove seat squab.


Refit
5. Lower seat squab brackets over retaining bolts, tighten bolts to 10 Nm, 7 lbf ft.
6. Secure seat squab to wheel arch, tighten bolts to 10 Nm, 7 lbf ft.
7. Raise seat cushion and fit stowage strap.
