Engine Harness

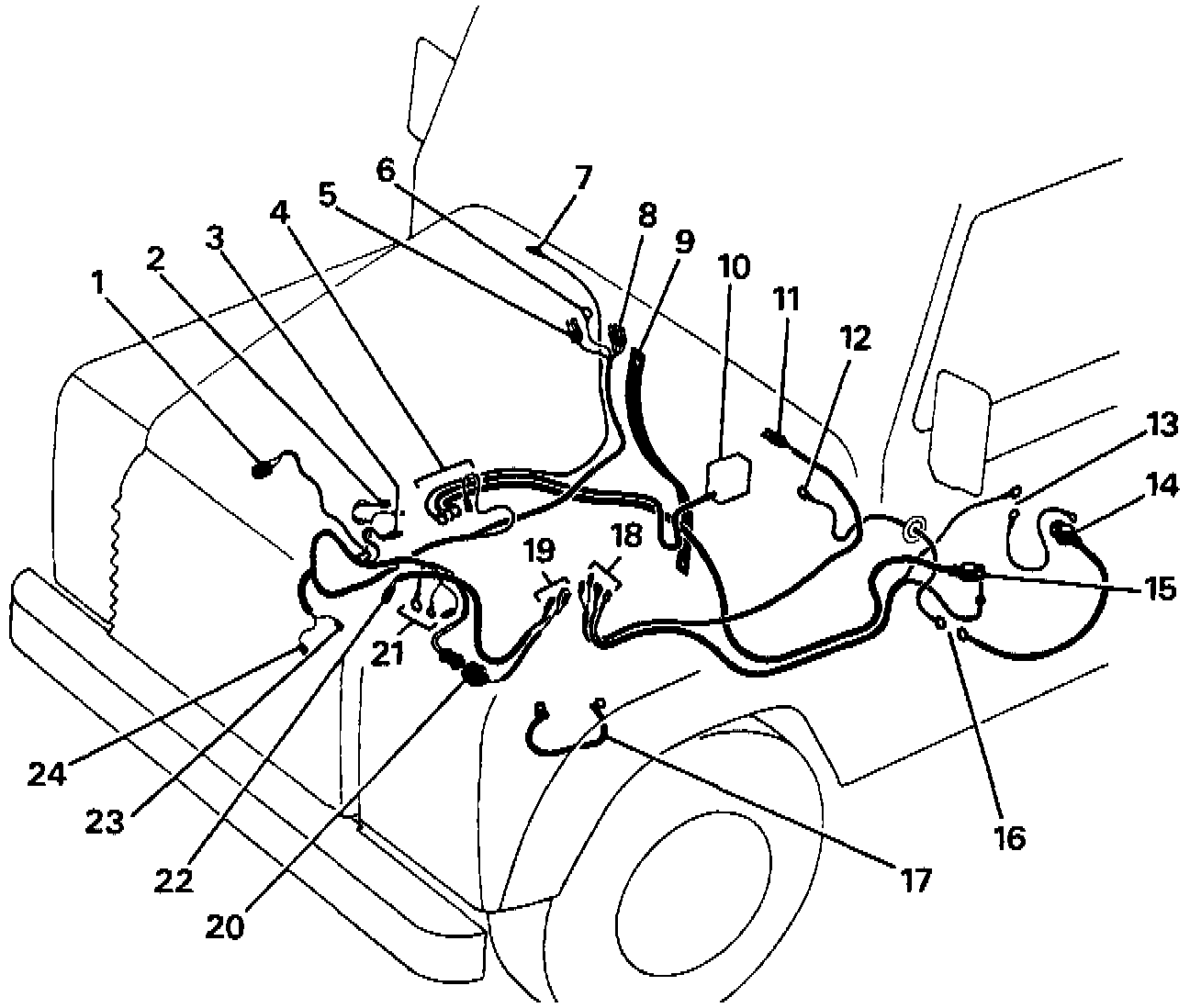

Engine Harness:





1. Air conditioning compressor connector, 110 only
2. Fan temperature transmitter, 110 only
3. Water temperature sensor
4. Starter motor connector
5. Air conditioning connection, 110 only
6. Ground
7. Air conditioning connection, 110 only
8. Main cable assembly connection
9. Ground braid
10. Main fuse box
11. Main cable assembly split charge connection, 110 only
12. Gearbox ground
13. Split charge terminals, 110 only
14. Battery terminal Ground
15. Battery terminal Positive +
16. Isolation switch terminals
17. Engine ground strap
18. Split charge unit terminals
19. Coil connections
20. Low tension connection, 110 only
21. Alternator connection
22. Ignition module connection
23. Oil temperature sensor connection, 110 only
24. Oil pressure switch connections
