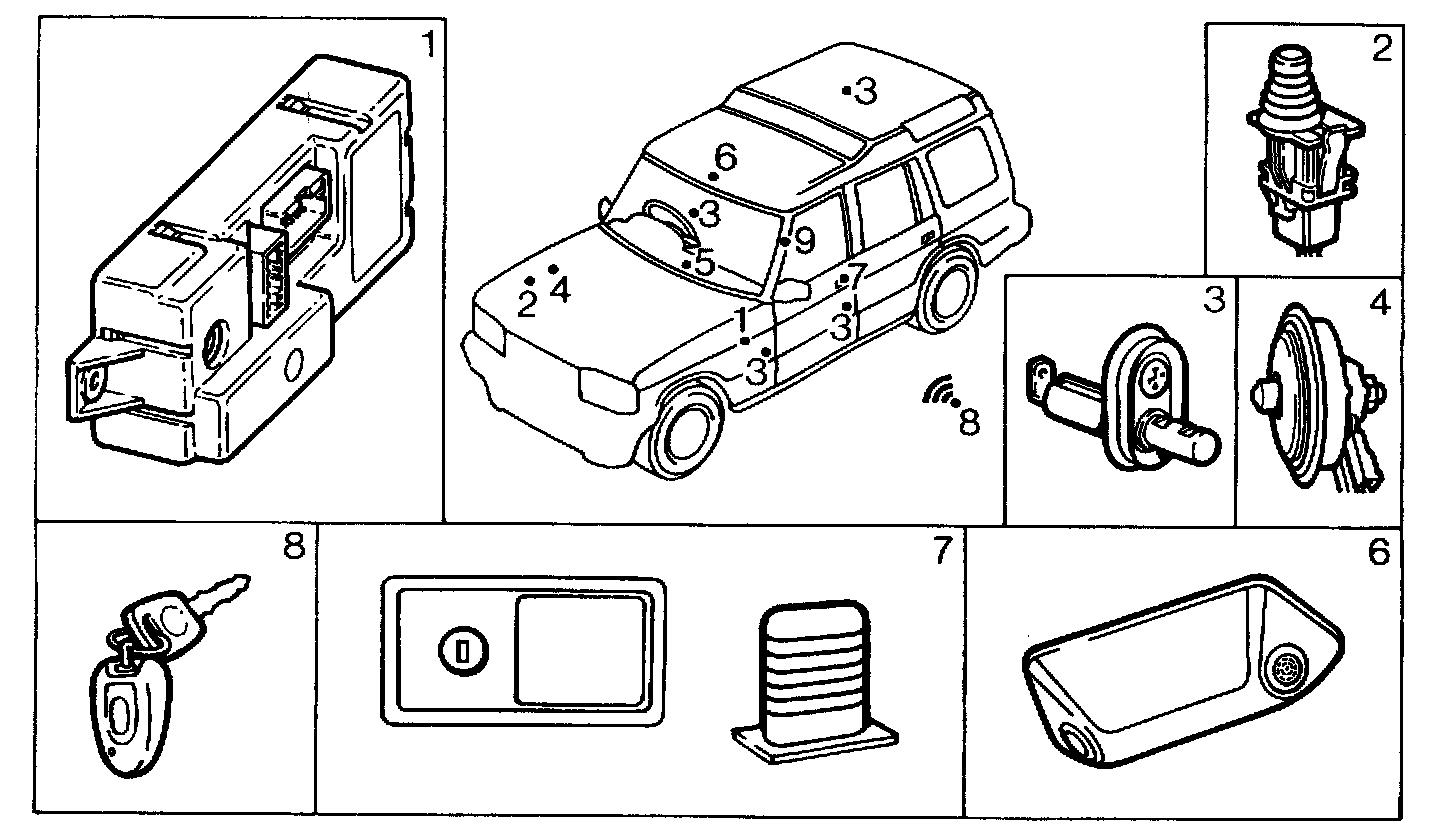

System Components
COMPONENT LOCATION 1
Electronic control unit
(ECU) and relays
Passenger footwell
2
Bonnet switch
RH engine bay
3
Door switches
4
Alarm sounder
RH engine bay
5
Light emitting diode
(LED) Dash panel
6
Ultrasonic unit
Roof map pocket
7
Lock barrel,sill buttons
8
Handset transmitter
9
Aerial
'A' post, passenger side.
