Automatic Transmission/Transaxle

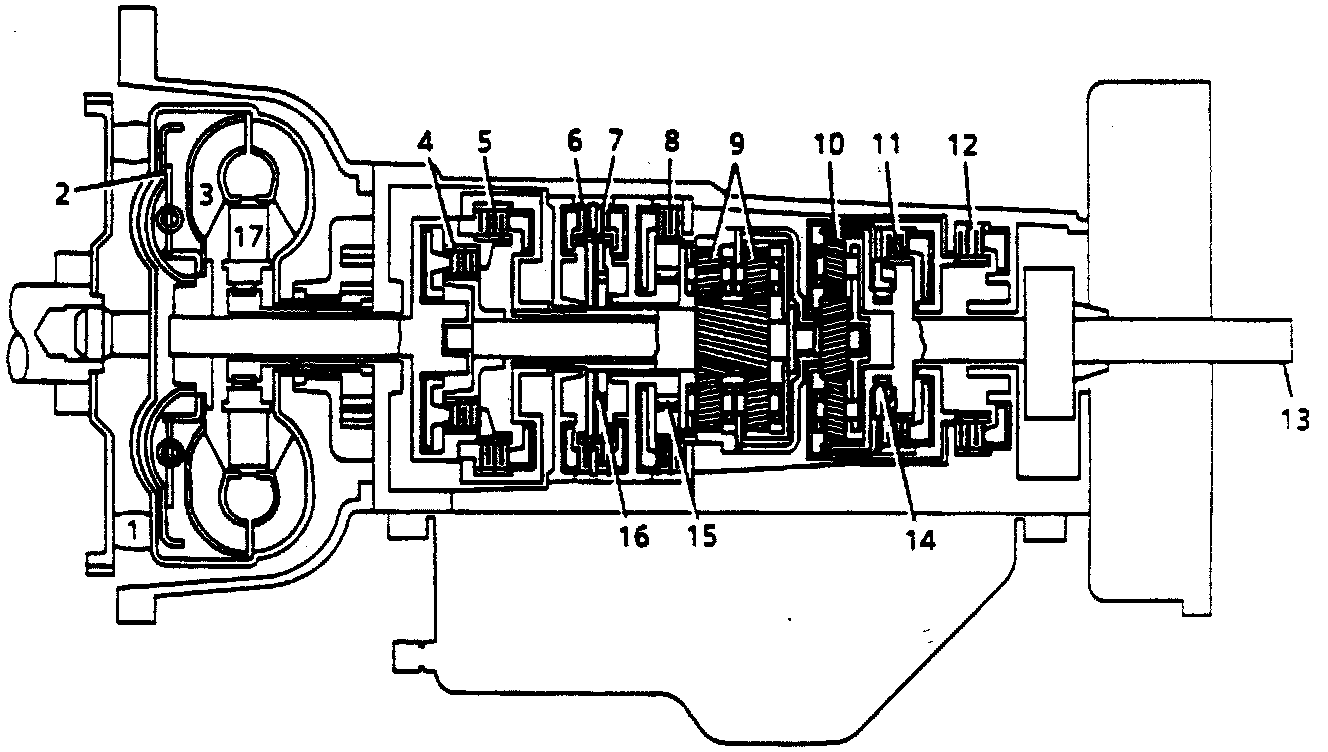

MECHANICAL COMPONENTS

1 - Input/Impeller
2 - Converter Lock Up Clutch
3 - Turbine
4 - Clutch Forward Drive (A)
5 - Clutch Reverse Drive (B)
6 - Clutch Brake (C & C') (C & C')
7 - Clutch Brake (D)
8 - Epicyclic Gear Set
9 - Epicyclic Gear Set
10 - Epicyclic Gear Set
11 - Clutch (E)
12 - Clutch Brake (F)
13 - Input to Transfer Box
14 - Freewheel (One Way Clutch)
15 - Freewheel (One Way Clutch)
16 - Freewheel (One Way Clutch)
17 - Stator and One Way Clutch
