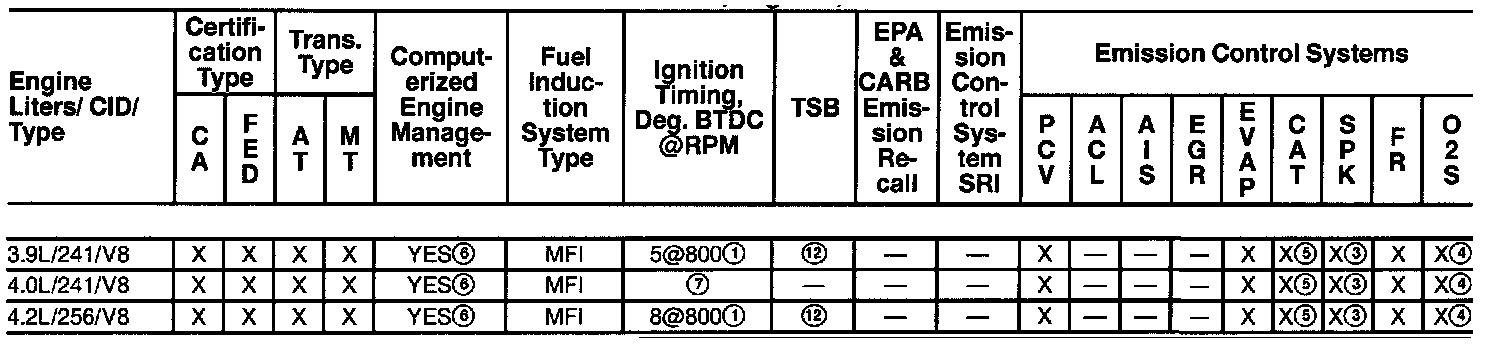

Emission System Application Chart

Footnotes:

X - Equipped

- Not Equipped

1 - W/distributor vacuum unit disconnected.

2 - Type TWC; number of catalytic converters, 3.

3 - DI (Distributor Ignition).

4 - Two 02S.

5 - Type, TWC; number of catalytic converters 2.

6 - Lucas MFI system.

7 - Refer to the emission control information label.

8 - EI/GEMS.

9 - Bosch L Jetronic System.

10 - Electronic Engine Control System.

12 - Certain 1993 Defender 110, 1993-95 Range Rover Classic & 1994-95 Defender 90 & Discovery models may experience extreme low temperature no start condition.
