Camshaft Position Sensor: Service and Repair

CAMSHAFT POSITION (CMP) SENSOR

Remove
1. Disconnect battery negative lead.

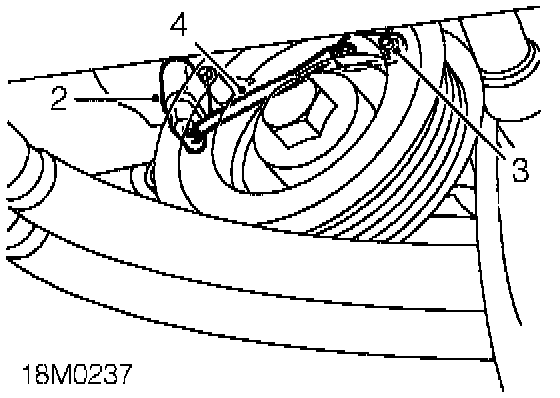

2. Release sensor multiplug from clip and disconnect multiplug.
3. Remove bolt securing sensor to front cover.
4. Remove sensor.
5. Remove and discard "O" ring.

Refit
6. Clean sensor and mating face on front cover.
7. Lubricate and fit "O" ring to sensor.
8. Fit sensor, fit bolt and tighten to 8 Nm (6lb.ft).
9. Connect sensor multiplug and secure to bracket.
10. Reconnect battery negative lead.
