Knock Sensor - LH

KNOCK SENSOR - LH

CAUTION: Due to the sensitivity of the sensor, do not apply tape or sealant to sensor threads.

Remove
1. Raise vehicle on hoist.

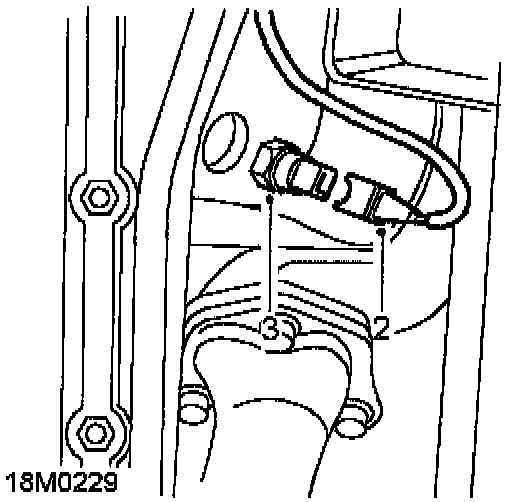

2. Depress spring clip and disconnect multiplug from LH knock sensor.
3. Remove sensor from engine.

Refit
4. Clean mating faces of sensor and engine.
5. Fit sensor and tighten to 16 Nm (22 lb.ft.)

CAUTION: Failure to tighten sensor to correct torque will result in malfunction or sensor damage.

6. Connect multiplug to sensor.
7. Lower vehicle.
