Procedures

FLYWHEEL
Service repair no -12.53.07

Remove
1. Remove clutch assembly.
2. Rotate flywheel until location dowel is opposite starter motor.

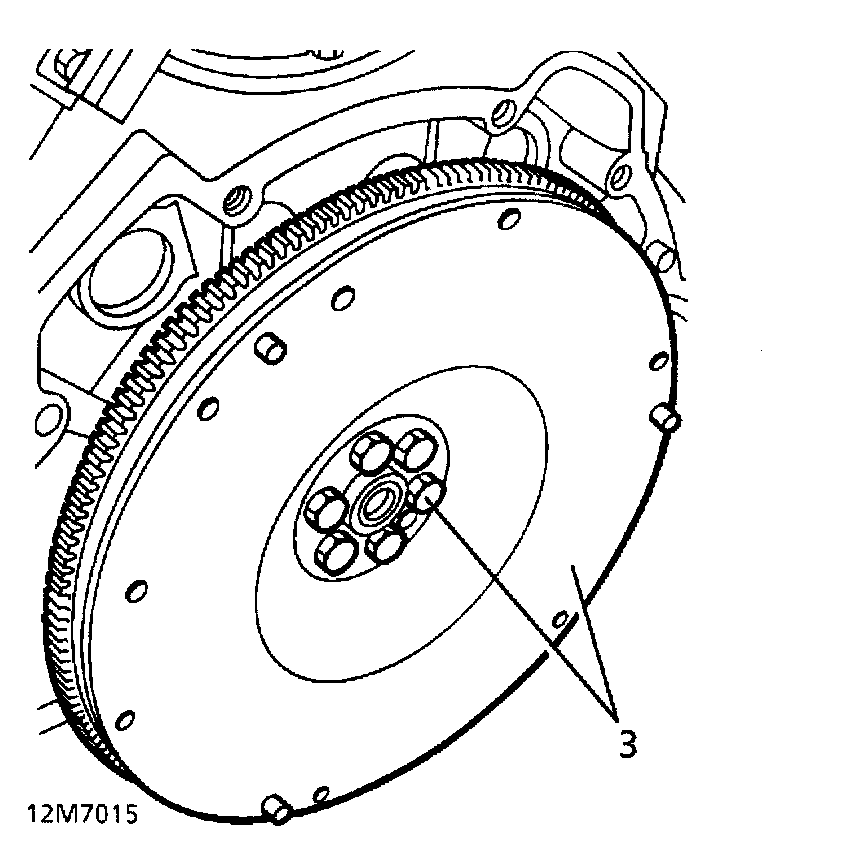

3. Remove 6 flywheel securing bolts. Remove flywheel.
4. Inspect flywheel clutch face for cracks, scores or overheating.
5. Inspect ring gear for worn, chipped or broken teeth.


Refit
6. Ensure mating surfaces, dowel and dowel locations in both flywheel and crankshaft are clean.
7. Offer flywheel up to crankshaft. Locate on dowel.
8. Refit flywheel bolts. Tighten to 80 Nm (59 ft. lbs.)
9. Refit clutch assembly.
