Rear Window - Door Switch
Rear Window - Door Switch
Service Repair No - 86.25.10Remove 1

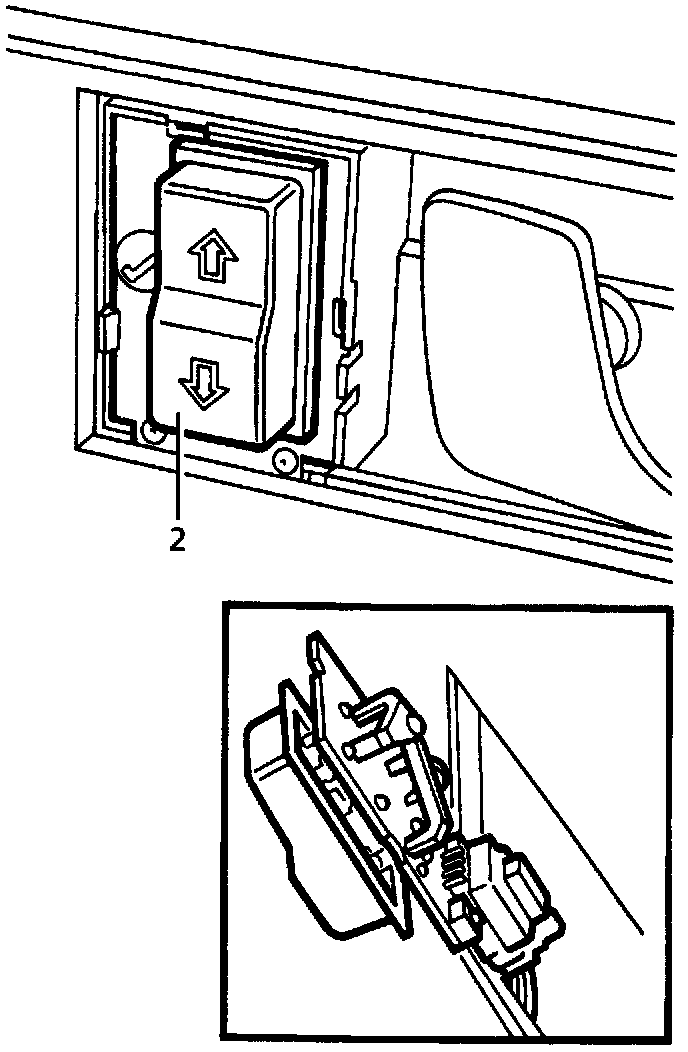

Remove screw securing handle escutcheon to rear door trim casing Remove escutcheon.
2
Release switch from location. Disconnect multiplug.
CAUTION: Do not allow multiplug to drop behind trim casing.
Refit 3
Reverse removal procedure.
