Navigation Display: Service and Repair

Display Unit

Service Repair No - 86.53.20

Remove

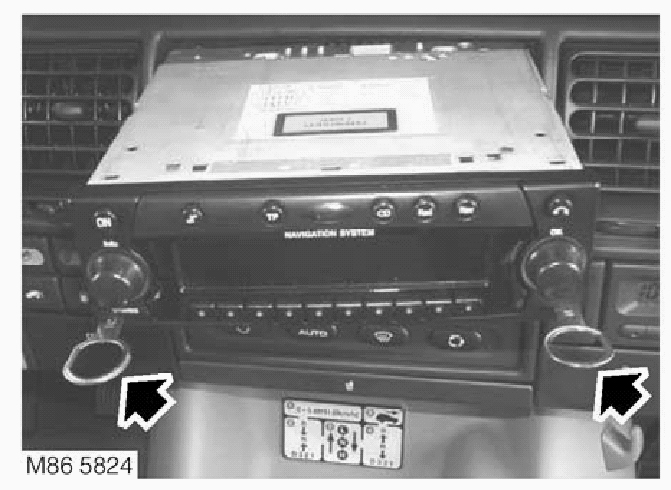

1. Fit tool LRT-86-009 into slots ensuring correct handed key is in correct slot.
^ The tools are stamped either 'TOP L' or 'TOP R', ensure the stamping is facing upwards when removing the unit.

2. Pull display unit from fascia.







3. Disconnect 3 multiplugs and 2 coax cables from display unit and remove unit.
4. Push display unit retaining clips inwards and remove keys.

Refit

1. Position display unit to fascia, connect multiplugs and coax cables.
2. Push display unit into fascia until retaining clips engage.
3. Enter security code and check system is operational.
