Auxiliary Step / Running Board: Service and Repair

76.10.41 Rear Folding Step

Remove

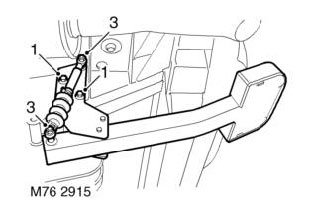

1. Remove 2 bolts securing step and damper assembly to chassis.
2. Remove step and damper assembly.
3. Remove 2 patch lock nuts securing damper to step and discard nuts.
4. Remove damper from step.

Refit

1. Fit damper to step and secure with new patch lock nuts. Tighten nuts to 17 Nm (13 lbf.ft).
2. Position step and damper assembly to chassis and secure with bolts. Tighten bolts to 45 Nm (33 lbf.ft).
