Front Fender Liner: Service and Repair

76.10.48 Liner - Wheel Arch - Front

Remove

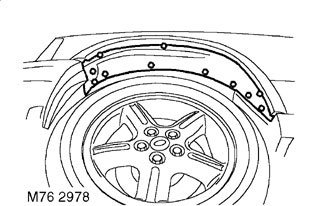

1. Remove 3 screws securing wheel arch liner to wing.
2. Remove 2 screws securing wheel arch liner to wheel arch liner extension.
3. Remove centres of 6 trim clips securing wheel arch liner to body.
4. Remove outers of trim clips.
5. Remove wheel arch liner.

Refit

1. Position wheel arch liner to body.
2. Fit trim clip outers to liner.
3. Fit centres to trim clips.
4. Fit and tighten screws securing wheel arch liner to wing and wheel arch liner extension.
