Grille: Service and Repair

76.55.03 Grille - Front - Up To 03MY

Remove

1. Remove repeater lamps.

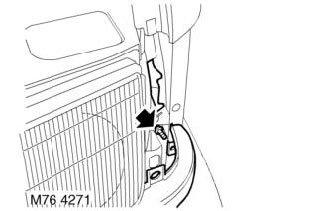

2. Via access hole in wheel arch liners, remove screws securing headlamp finishers.
3. Remove headlamp finishers from grille.

4. Remove 2 screws securing lower corners of grille.

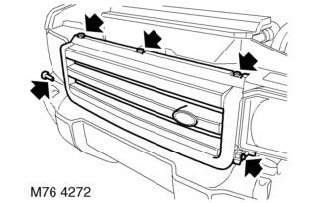

5. Remove 3 scrivets and remove grille.

Refit

1. Fit grille and secure with scrivets and screws.
2. Fit headlamp finishers and secure with screws.
3. Fit repeater lamps.
