Power Door Lock Switch: Service and Repair

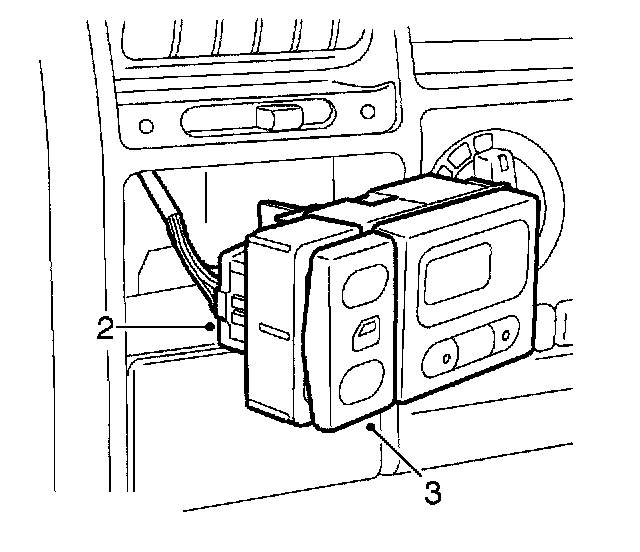

Remove 1.
Carefully remove clock assembly from louvre panel.
2.
Disconnect multiplug from door lock switch.
3.
Remove door lock switch from clock.
Refit 1.
Fit door lock switch to clock assembly.
2.
Connect multiplug to door lock switch.
3.
Position clock assembly and push to secure in position.
